CE 351, Fall 2020
Project 5
Name: Cesar Molina
Email: camolina@fortlewis.com

1. Title: Accelerometer - MPU 6050 and the I2C communication protocol

2. Introduction

The purpose of this project was to introduce students to the I2C serial communication protocol by performing different tasks using Arduino IDE and an accelerometer. The tasks included generating figures of accelerations and angles on the x, y and z directions by moving or rotating the sensor. By the end of this project, students gained an ability to use I2C serial communication to transfer data from the MPU6050 accelerometer to the Arduino.


3. Materials and Methods

The Arduino code for I2C serial communication and circuit schematic was provided by Dr. Li on his webpage and can be found here.

Project 6 consisted of the following tasks:

1.     Generate figures that show accelerations on the X, Y, and Z axis separately.

2.     Generate figures that show angles on the X, Y, and Z axis separately.

4. Results

Figure 1: Task 1 - Circuit Schematic

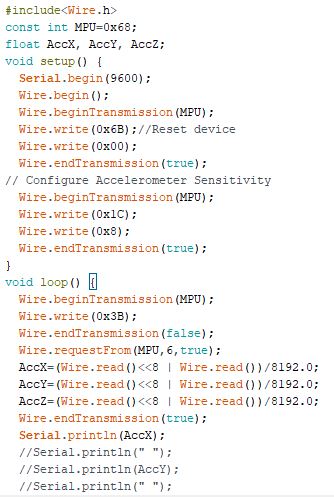

Figure 2: Task 1 - Arduino Code

Movie 1: Task 1 - Real time acceleration readings

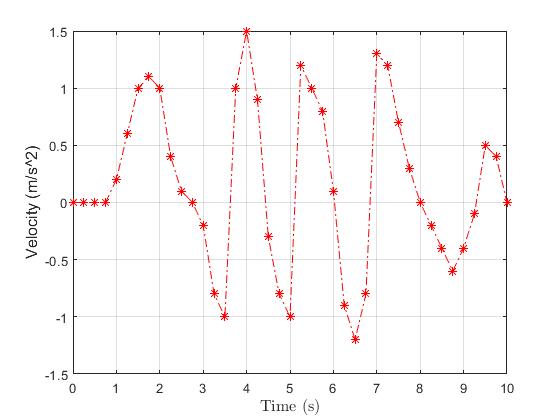

Figure 3:  Task 1 -  Acceleration  in the  X-axis

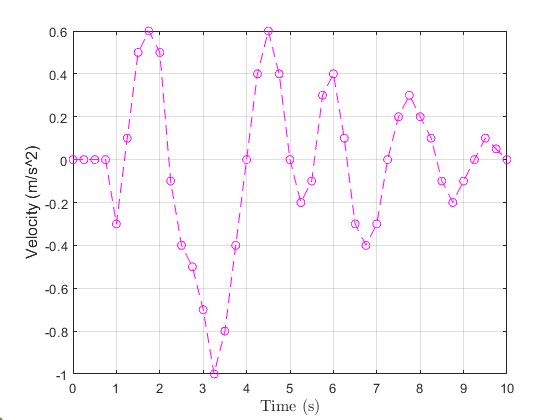

 Figure 4: Task 1 - Acceleration in the Y-axis

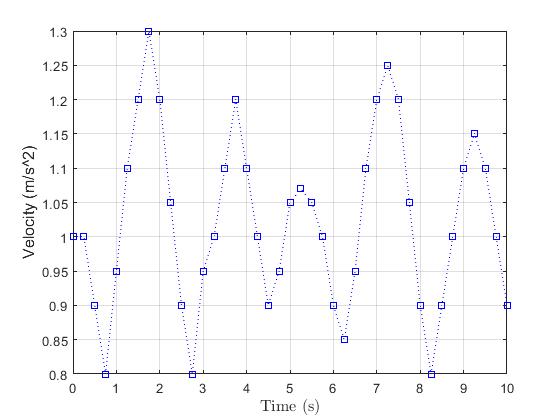

Figure 5: Task 1 - Acceleration in the Z-axis

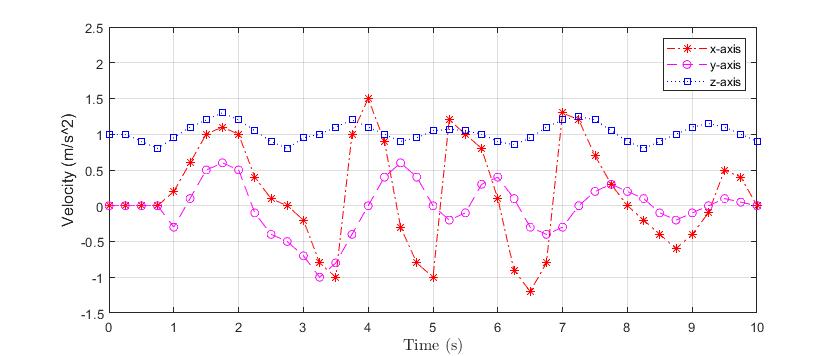

Figure 6: Task 1 - Acceleration in the X, Y and Z axis

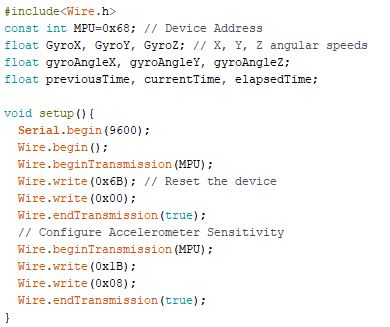

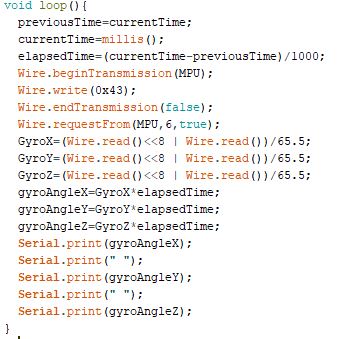

Figure 7: Task 2 - Arduino Code

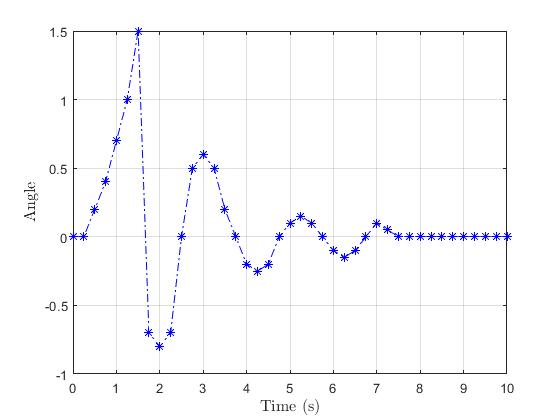

Figure 8:  Task 2 -  Rotation  in the  X-axis

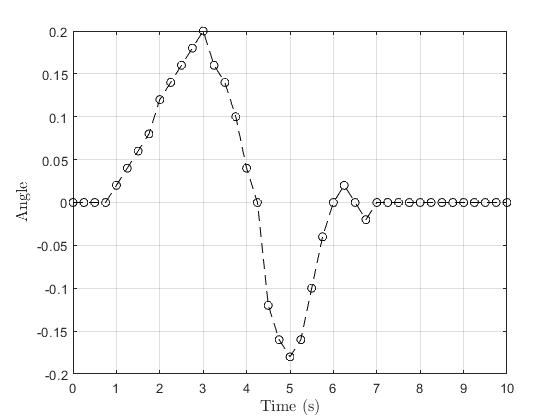

 Figure 9: Task 2 - Rotation in the Y-axis

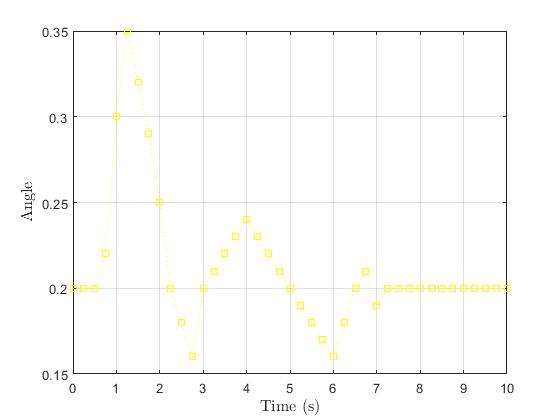

Figure 10: Task 2 - Rotation in the Z-axis

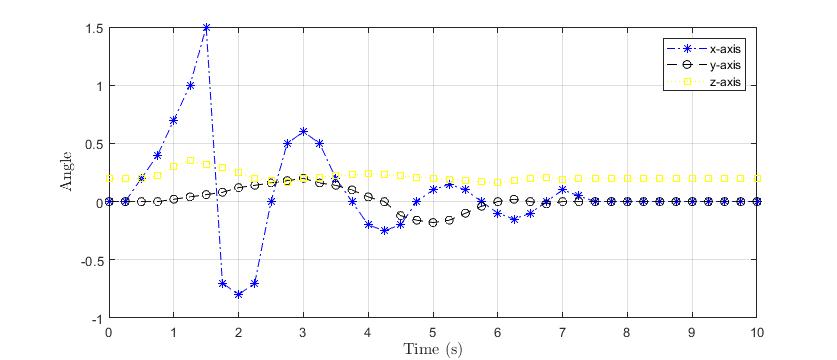

Figure 11: Task 2 - Rotation in the X, Y and Z axis

5. Discussion

All tasks were performed and executed successfully. The excel "data streamer" function was used to stream data to excel and then import it to MATLAB. The ability to use PID I2C communication protocol will be very useful for students throughout their engineering careers.
