Lab 1 Report
Superposition and Thevenin's Equivelant Circuit, both handwritten then tested in LTSpice.

TASK 1: Superposition

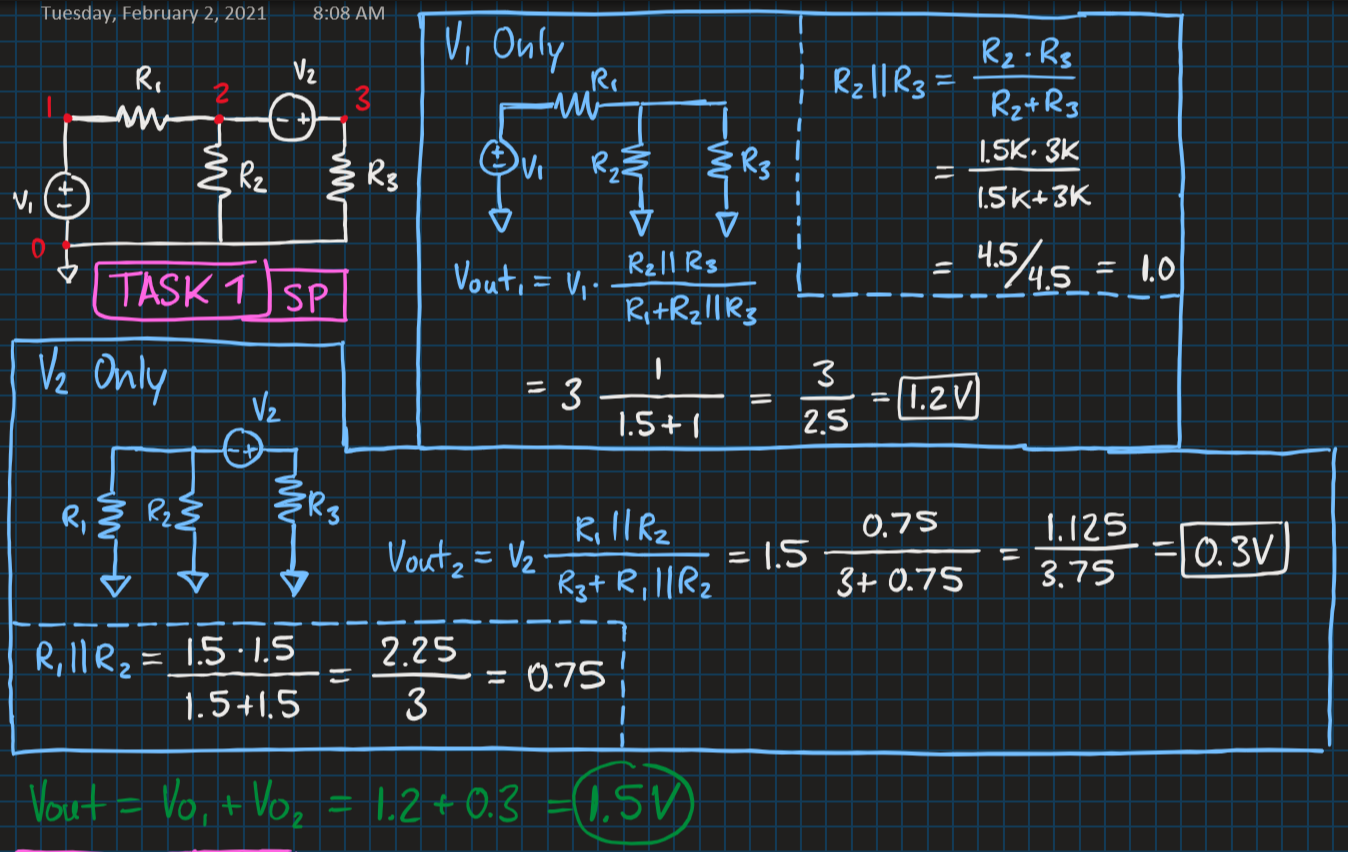

Here's my handwritten work in full for the first circuit:

• Each voltage [v1/v2] has its own box of work
• The final result is in green at the bottom

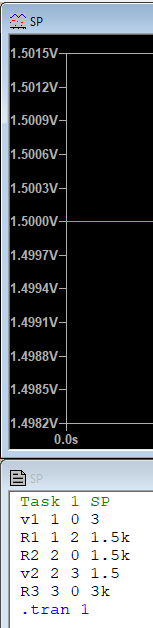

Afterwords, I managed to recreate this in LTSpice and the results agreed with what I worked out:


TASK 2: Thevenin's Equivelant Circuit

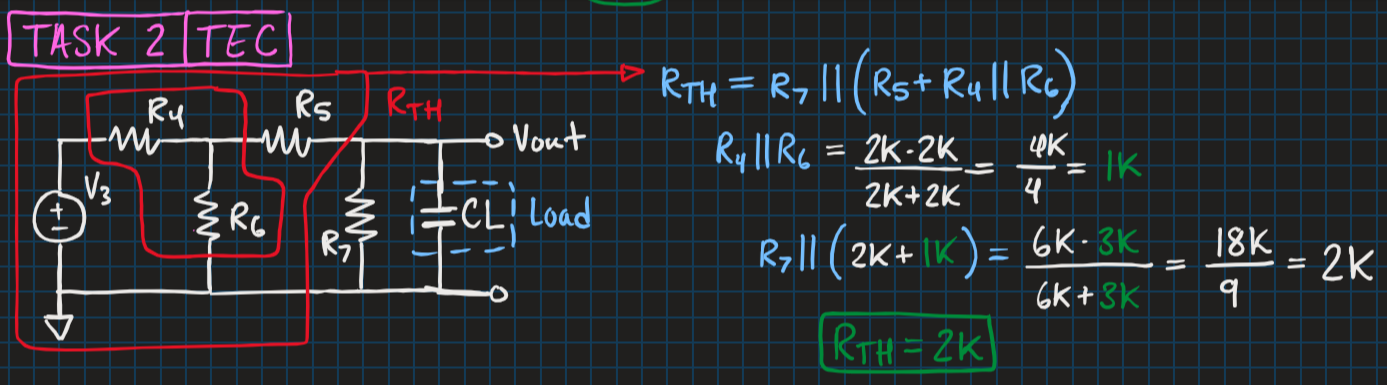

Below is my hand-written work for solving RTH:


Next is my hand-written work for solving ETH:

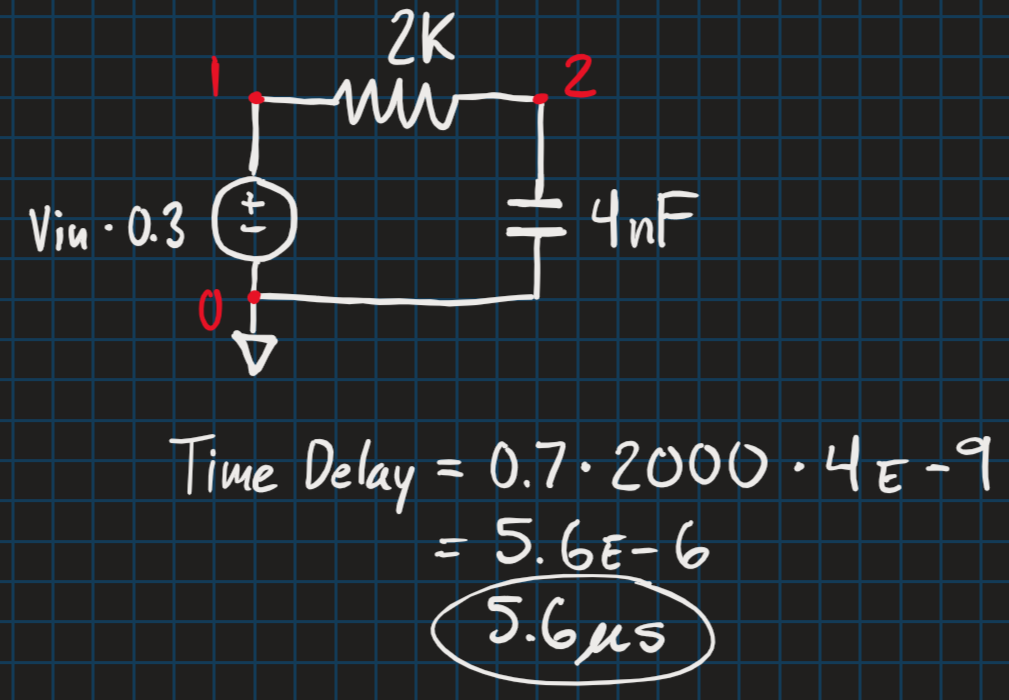

Both of these together to create the final circuit and figure out the time delay:

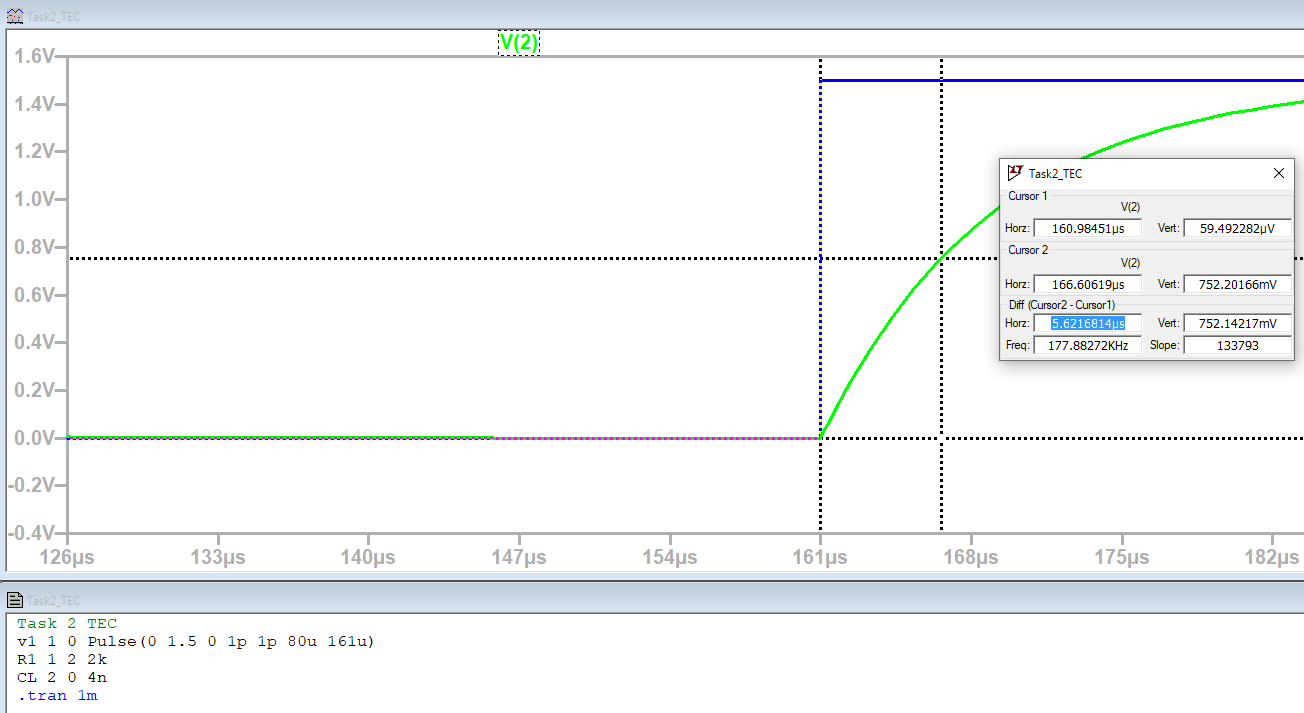

With much help from Dr. Li, we managed to recreate this result in LTSpice:
