ENGR 338  - Lab 4
Name: Max Krauss
Email: mtkrauss@fortlewis.edu

Lab 4 - MOSFETs and IV Curves

Objectives:
1. Be able to build MOSFETs in Electric.
2. Be able to run simulations to analyze the IV curves of the MOSFETs.

Tasks - Complete the tutorial made by Dr. R. Jacob Baker and show proof:

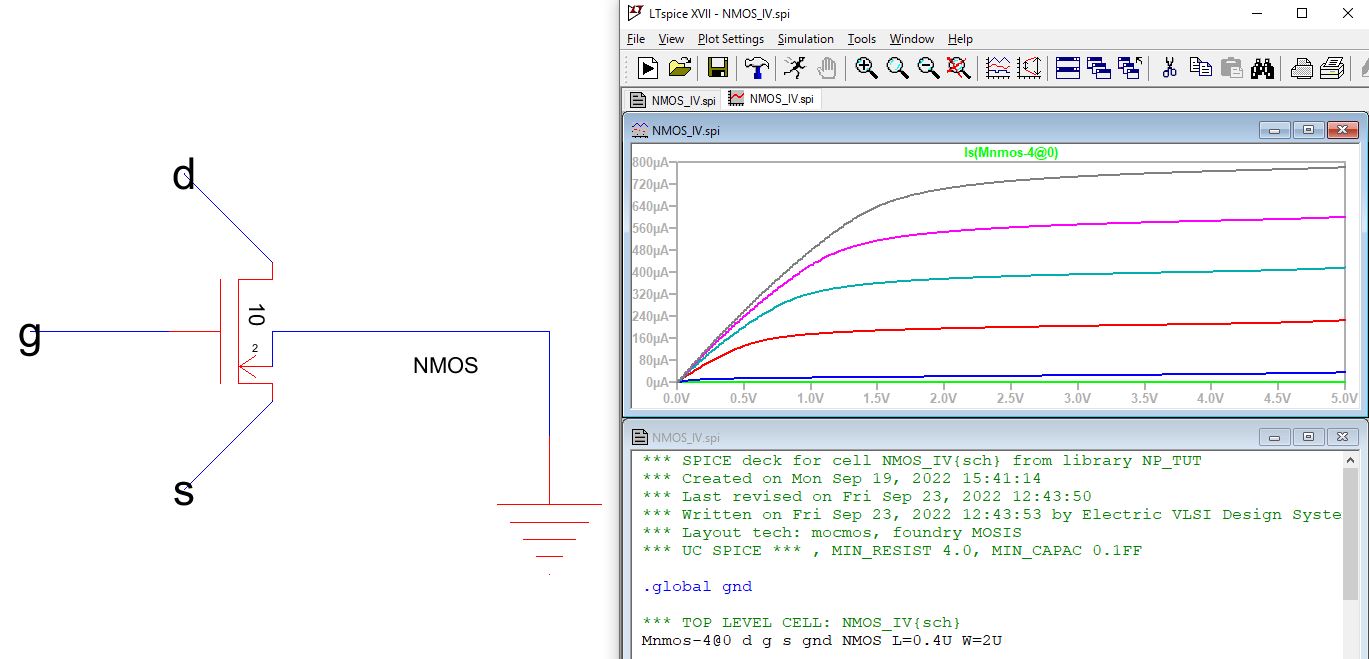

Figure 1: LTSpice Simulation for the NMOS schematic, IV curve.

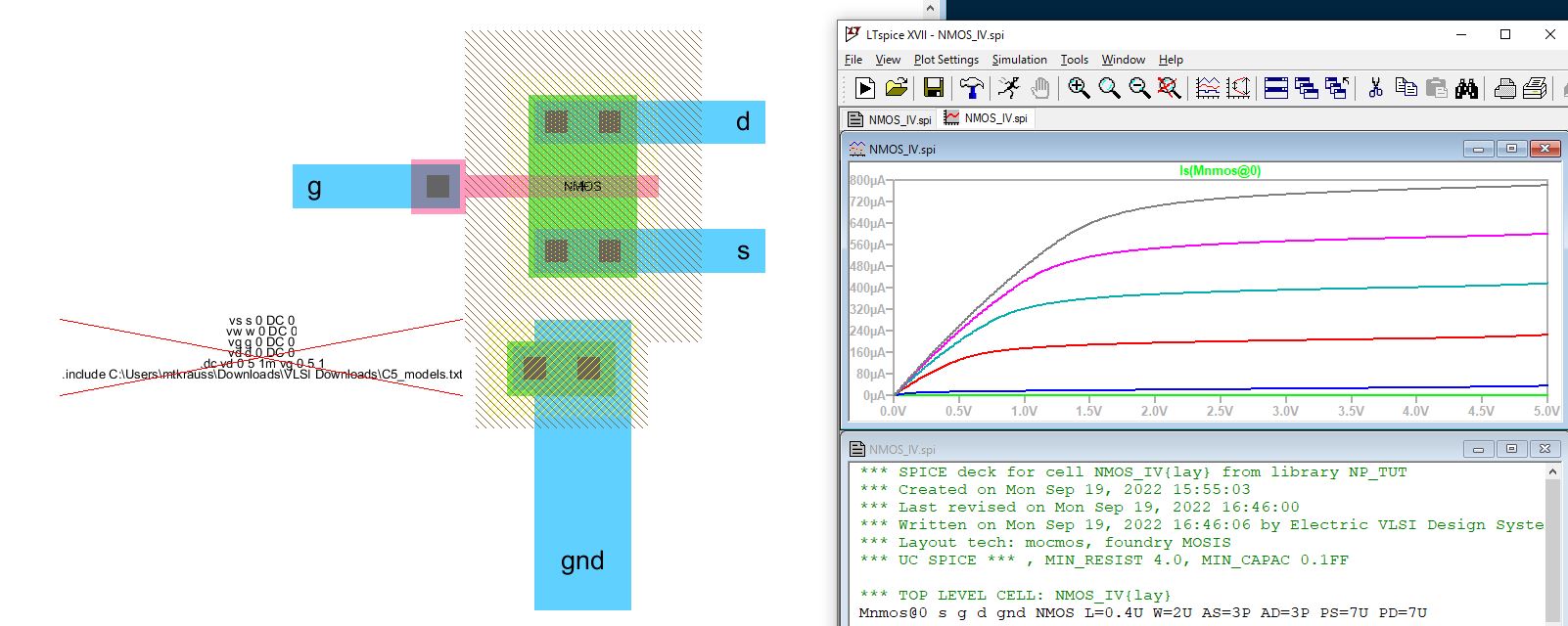

Figure 2: LTSpice Simulation for the NMOS layout, IV curve.

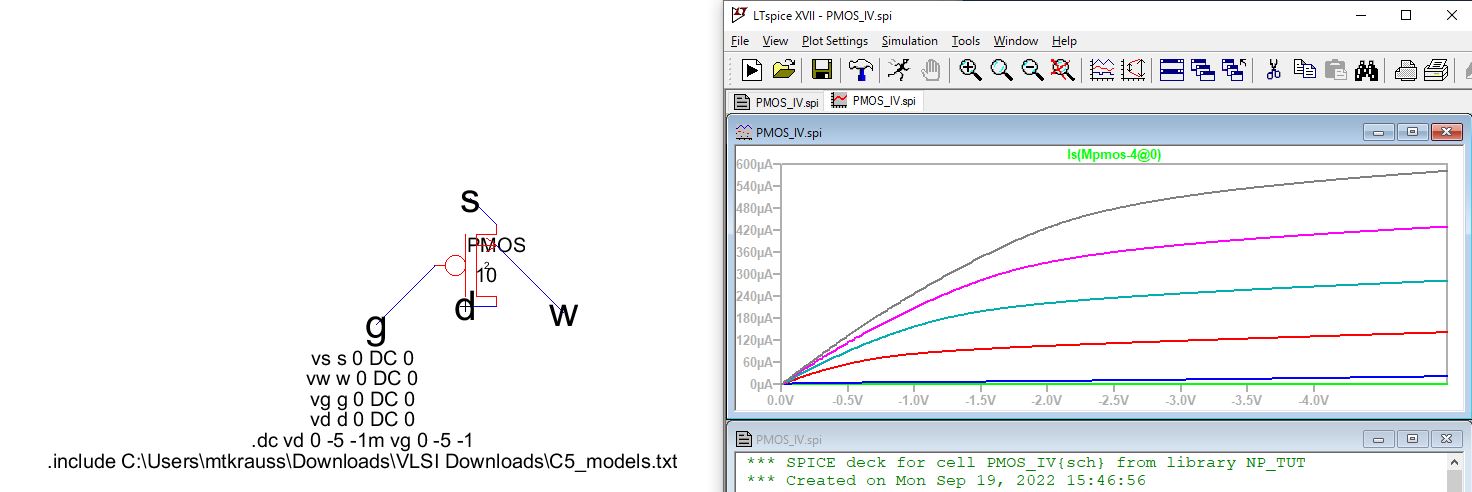

Figure 3: LTSpice Simulation for the PMOS schematic, IV curve.

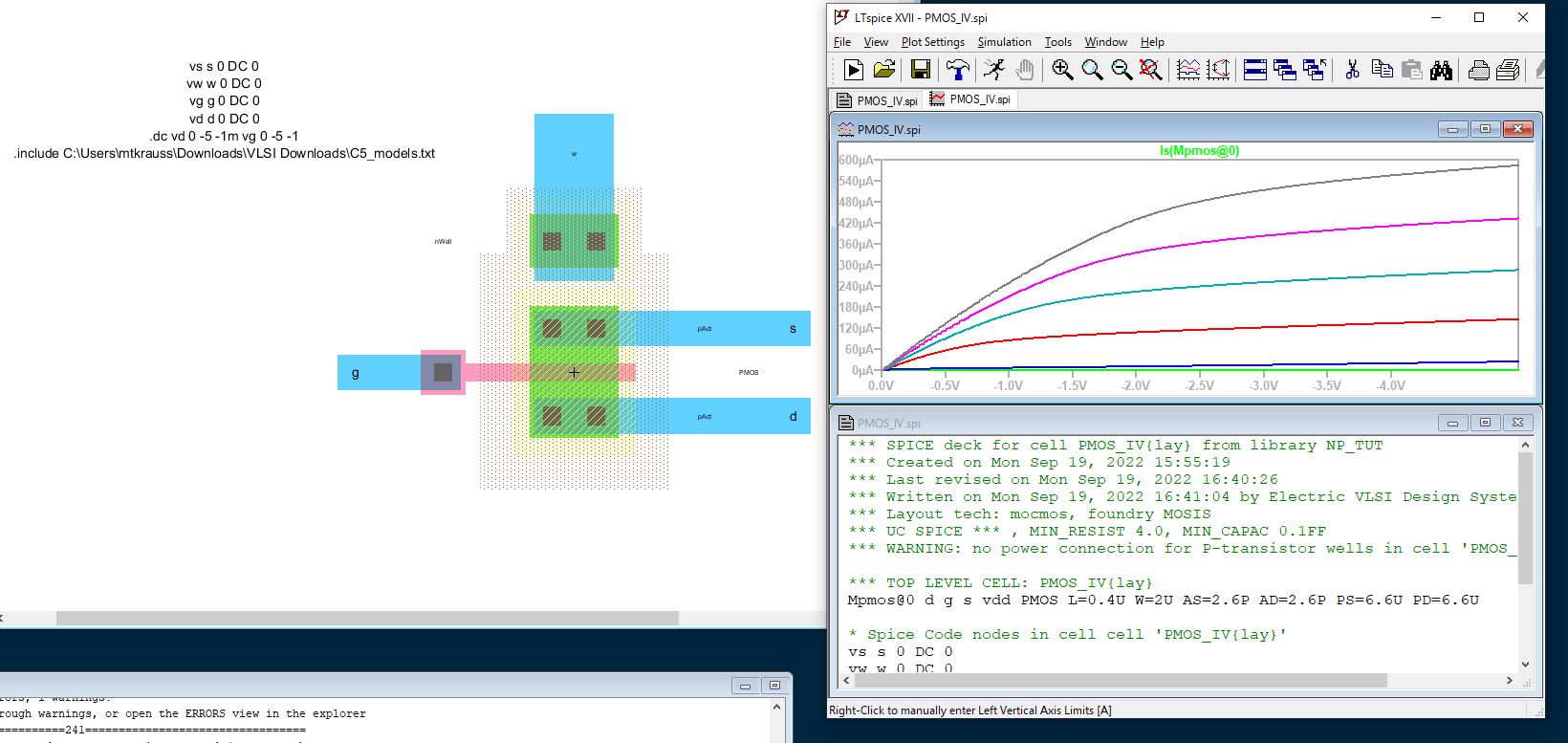

Figure 4: LTSpice Simulation for the PMOS layout,  IV curve.



Conclusion: This lab allowed us to create our own PMOS and NMOS transistors in Electric VLSI. It was exciting to see how these are made and how they ideally function in real life. This lab was even easier than the last one as I am becoming more familiar with using Electric VLSI.
