`timescale 1ns / 1ps

//////////////////////////////////////////////////////////////////////////////////

// Company:

// Engineer:

//

// Create Date: 03/06/2024 02:25:52 PM

// Design Name:

// Module Name: hw6

// Project Name:

// Target Devices:

// Tool Versions:

// Description:

//

// Dependencies:

//

// Revision:

// Revision 0.01 - File Created

// Additional Comments:

//

//////////////////////////////////////////////////////////////////////////////////

module VGA_module(clk25, pixel_data, sx, sy, red, green, blue, Hsync, Vsync, pixel_addr);

    input clk25;

    input [7:0] pixel_data;

    input [7:0] sx, sy;

    output reg [2:0] red, green , blue;

    output reg Hsync, Vsync;

    output reg [12:0] pixel_addr;

    localparam HDISP = 640;

    localparam HFP = 16;

    localparam HPW = 96;

    localparam HLIM = 800;

    localparam VDISP = 480;

    localparam VFP = 10;

    localparam VPW = 2;

    localparam VLIM = 525;



    reg [10:0] hcount = 0;

    reg [10:0] vcount = 0;

    reg enable = 0;



    always @(posedge clk25) begin

        if(hcount < HLIM - 1) hcount <= hcount + 1;

        else begin

            hcount <= 0;

            if(vcount < VLIM - 1) vcount <= vcount + 1;

            else vcount <= 0;

        end

        if(vcount > sy) begin

            pixel_addr <= -1;

            enable <= 0;

        end

        else begin

            if (hcount == sx) pixel_addr = pixel_addr - sx;

            if (hcount < 2 * sx) begin

                enable <= 1;

                pixel_addr <= pixel_addr + 1;

            end else enable <= 0;

        end

        if(enable == 1) begin

            red <= pixel_data [2:0];

            green <= pixel_data [5:3];

            blue <= pixel_data [7:6];

        end else begin

            red <= 3'b000;

            green <= 3'b000;

            blue <= 2'b00;

        end

        if (hcount > (HDISP + HFP) && hcount <= (HDISP + HFP + HPW)) Hsync <= 0;

        else Hsync <= 1;

        if (vcount >= (VDISP + VFP) && vcount <= (VDISP + VFP + VPW)) Vsync <= 0;

        else Vsync <= 1;

    end

endmodule

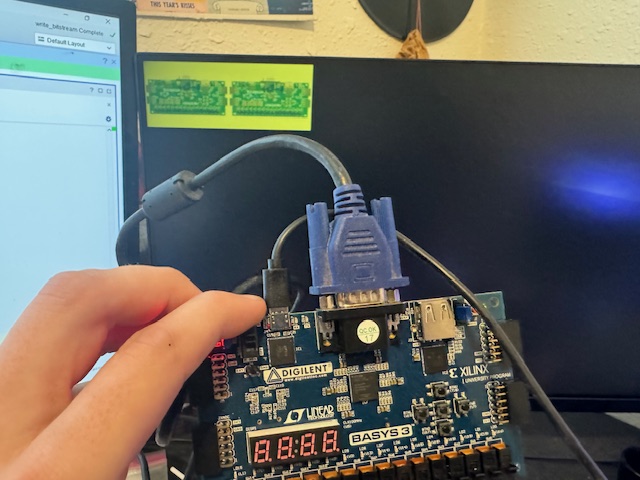

module VGA_top_module(clk, vgaRed, vgaGreen, vgaBlue, Hsync, Vsync);

    input clk;

    output [2:0] vgaRed;

    output [2:0] vgaGreen;

    output [1:0] vgaBlue;

    output Hsync;

    output Vsync;



    parameter sx = 80;

    parameter sy = 80;



    wire clk25;

    wire [12:0] pixel_addr;

    wire [7:0] pixel_data;



    clk_wiz_0 clock(clk25, clk);

    dist_mem_gen_0 memory(.a(pixel_addr), .spo(pixel_data));



    VGA_module VGA(.clk25(clk25), .pixel_data(pixel_data), .sx(sx), .sy(sy), .red(vgaRed), .green(vgaGreen), .blue(vgaBlue), .Hsync(Hsync), .Vsync(Vsync), .pixel_addr(pixel_addr));

endmodule
