Xcelium Tutorial

Introduction:
This tutorial lays out methods which allow you to simulate verilog code in Xcelium. The work flow of this program is similar to that of Vivado which was learned in CE433 Embedded Devices. While working through this tutorial if you want to create different simulations that you did in vivado make sure that the outputs are the same and that is a way to verify the correct output.

Materials and Methods:
Using the Cadence Server, Xcelium Software installed on the Server, MobaXterm to log into the server and basic Verilog coding practices.

Results:

Task 1: Change the .bashrc file on the server to be able to launch Xcelium


# .bashrc

# Source global definitions
if [ -f /etc/bashrc ]; then
    . /etc/bashrc
fi

export CDSHOME=/4Tbhardrive/cadence/cadence/installs/IC618
export MMSIMHOME=/cadence/SPECTRE181/
export XCELIUMHOME=/4Tbhardrive/home/Xcelium
export LANG=C
export ASSURAHOME=/4Tbhardrive/cadence/cadence/installs/ASSURA41
export PATH=$CDSHOME/tools/bin:$CDSHOME/tools/dfII/bin:$MMSIMHOME/tools/bin:$MMSIMHOME/tools/dfII/bin:$ASSURAHOME/tools/assura/bin:
$ASSURAHOME/tools/bin:$XCELIUMHOME/tools/bin:$PATH
export CDS_AUTO_64BIT=ALL
export LD_LIBRARY_PATH=$AMSHOME/tools/lib:$CDSHOME/tools.lnx86/lib:/usr/lib:/usr/dt/lib:/usr/openwin/lib/usr/lib:$AMSHOME/tools/lib:/usr/dt/lib:/usr/openwin/lib:
$CDSHOME/tools.lnx86/lib:$AMSHOME/tools/lib/64bit:$AMSHOME/tools/lib:$ASSURAHOME/tools/lib:/usr/lib/libstdc++.so.6:$LD_LIBRARY_PATH
export CDS_LIC_FILE=5280@obelisk.srv.fortlewis.edu
export SPECTRE_DEFAULTS=-E
export CDS_Netlisting_Mode=Analog
export CDS_LOAD_ENV=CWDElseHome
export CDK_DIR=/4Tbhardrive/ncsu-cdk-1.6.0.beta
export tsmc=/4Tbhardrive/Users/djlee1/tsmc180nm/180_MS_RF_G/PDK/Cadence_OA/t018cmsp018k3_1_0a/tsmc180nm

export SUBSTRATESTORMHOME=$ASSURAHOME



Figure 1: Purple Highlight at the top shows how to access the hidden directory that the .bashrc file is in. Pink Highlight at the bottom shows how to open the .bashrc file.

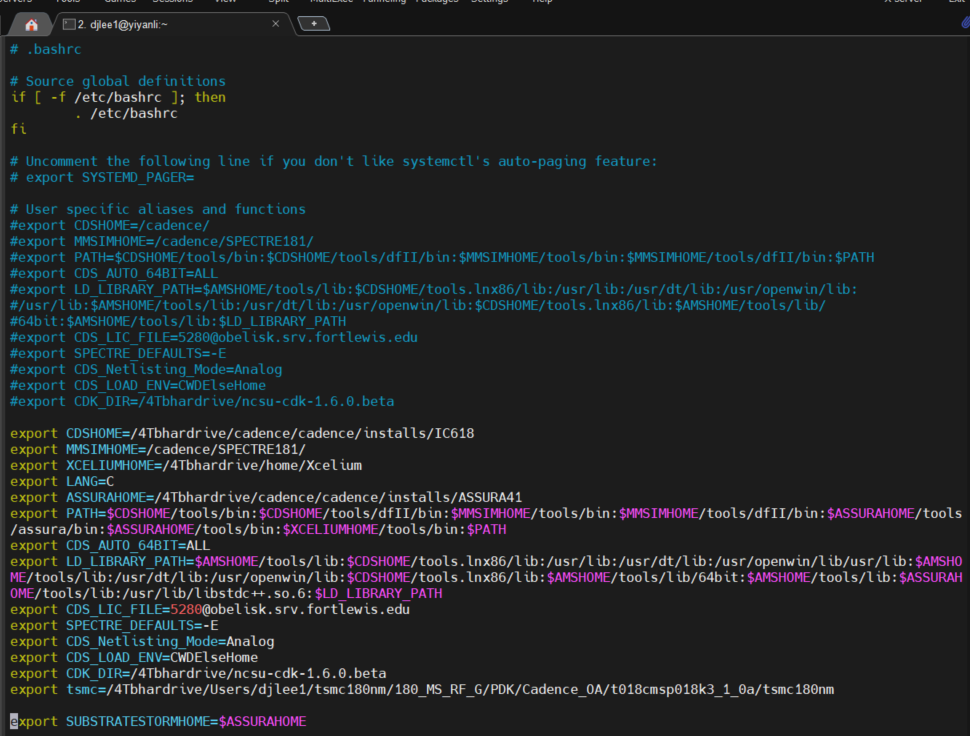

Figure 2: Shows the edited .bashrc file


Figure 3: Shows the successful completion of the bashrc file and shows that Xcelium will launch correctly

Task 2: Create a new folder that is called Simulations and create andGate.v to simulate


Figure 4: Shows the created simulation folder with the files that will be ran in the simulation


Figure 5: Shows prompt needed to create a new verilog file

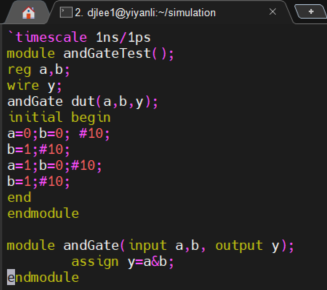

Figure 6: Shows the code needed for the andGateTest

Task 3: Simulate the andGateTest.v File


Figure 7: Shows the command to start simulation. The Purple highlight is the file which you will be wanting to simulate.

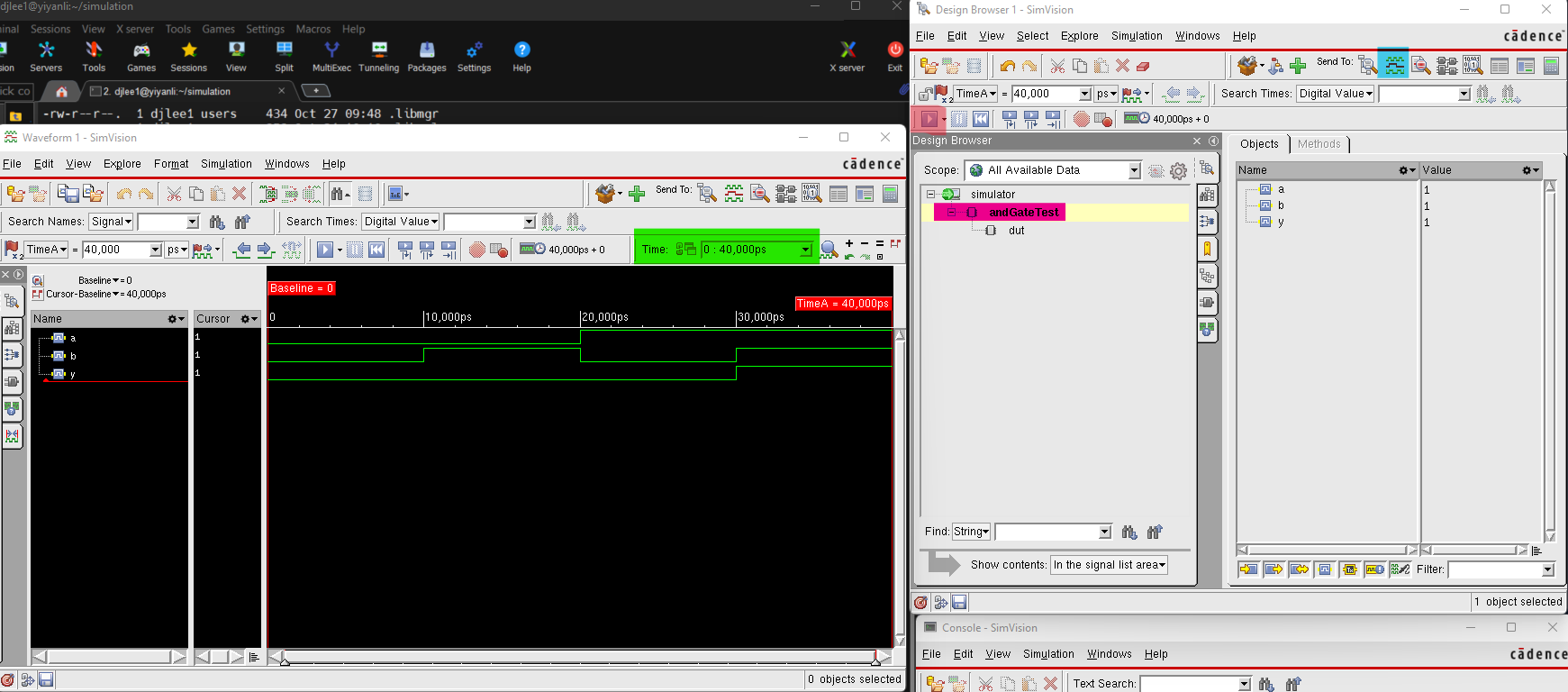

Figure 8: Shows results of the andGate simulation.

Inorder to get the waveform on the right to show up you need to make sure that andGateTest is selected, highlighted in pink. Once selected click show Waveform, blue highlighted box. Then a new window will pop up but it will be blank. Next Click the Run simulation button, Highlighted light red. Then the wave form will show up and you might need to adjust the time scale, highlighted in green, to see the complete simulation.

Task 4: Simulate 3 other complex simulations to show you understand


Figure 9: Shows simulation of a four bit comparitor

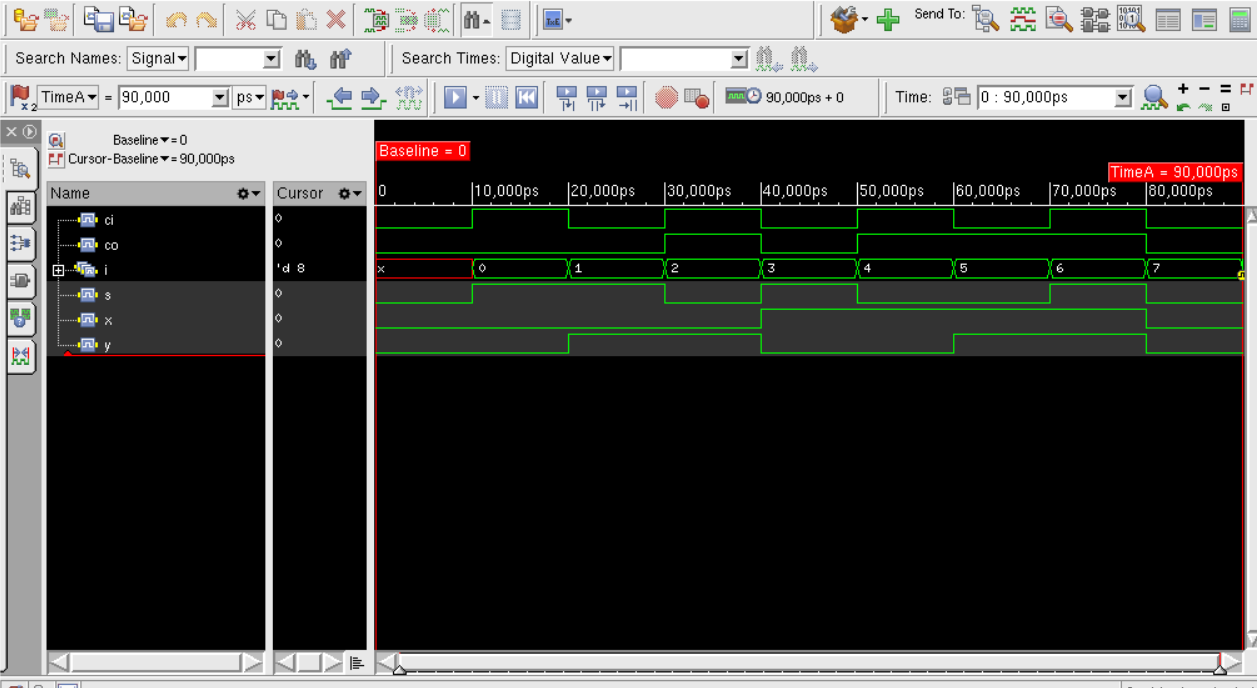

Figure 10: Shows simulation of an one bit full adder


Figure 11: Shows simulation of three bit parity generator.

Discussion:
After completeing all the tasks you should be familar with how to use Xcelium, simvison, to complete logic simulation on the cadence server.
