Scott Orban
CE 432
HW3

Problem 1:

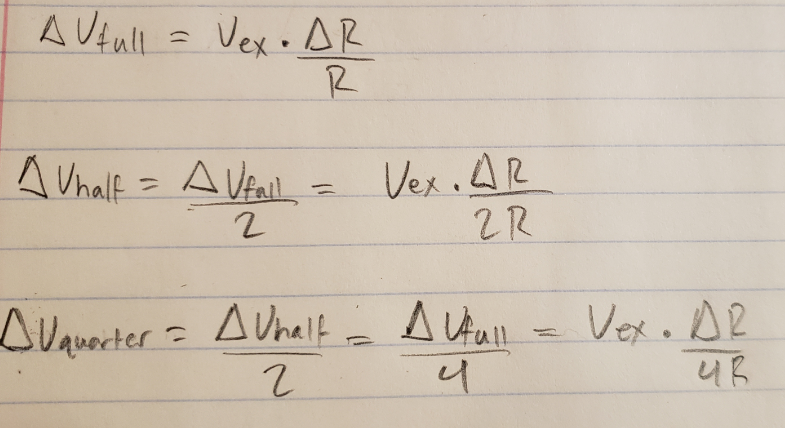

The half bridge and quarter bridge equations are the same as the full bridge except they are divided by 2 and 4 respectively. In other words the half bridge is half as sensitive as the full bridge and the quarter bridge is half as sensitive as the half bridge and a quarter as sensitive as the full bridge.

Problem 2:


Code:
const int trigPin = 12;
const int echoPin = 11;
float duration, distance;
void setup()
{
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  Serial.begin(9600);
}

void loop() {
  digitalWrite(trigPin,LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin,HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin,LOW);
  duration = pulseIn(echoPin,HIGH);
  distance = (duration*.0343)/2;
  Serial.print("Distance: ");
  Serial.println(distance);
  delay(100);
}

Problem 3:


Code:
#include<Wire.h>
const int MPU=0x68;//Device address
float AccX, AccY, AccZ;// X, Y, and Z acceleration values
void setup(){
  Serial.begin(9600);
  Wire.begin();
  pinMode(7,OUTPUT);
// Configure Accelerometer Sensitivity
  Wire.beginTransmission(MPU);
  Wire.write(0x6B);//Reset the device, very important
  Wire.write(0x00);
  Wire.endTransmission(true);
  Wire.beginTransmission(MPU);
  Wire.write(0x1C);//Talk to the ACCEL_CONFIG register (1C hex)
  Wire.write(0x08);//Set the register bits as 00001000 (+/- 4g full scale range)
  Wire.endTransmission(true);
}
void loop(){
  Wire.beginTransmission(MPU);
  Wire.write(0x3B);//Start with register 0x3B
  Wire.endTransmission(false);
  Wire.requestFrom(MPU,6,true);// Read 6 registers total
  AccX=(Wire.read()<<8 | Wire.read())/8192.0;
  AccY=(Wire.read()<<8 | Wire.read())/8192.0;
  AccZ=(Wire.read()<<8 | Wire.read())/8192.0;
  Wire.endTransmission(true);
  Serial.print(AccX);
  Serial.print(" ");
  Serial.print(AccY);
  Serial.print(" ");
  Serial.println(AccZ);
  if (AccZ >1.5)
  {
    digitalWrite(7,HIGH);
    delay(500);
    }
  else{digitalWrite(7,LOW);}
}


Problem 4:


Transmitter Code:
const int X_pin = 0;
const int Y_pin = 1;
int xValue;
int yValue;

void setup() {
  Serial.begin(9600);
}

void loop() {
  xValue = analogRead(X_pin);
  yValue = analogRead(Y_pin)*(-1);
  Serial.println(xValue);
  Serial.println(yValue);
}

Receiver Code:
int Data, xData, yData;
const int dirPin = 2;
const int stepPin = 3;
const int MS1 = 10;
const int MS2 = 9;
const int MS3 = 8;

void setup() {
  Serial.begin(9600);
  pinMode(stepPin,OUTPUT);
  pinMode(dirPin,OUTPUT);
  pinMode(MS1,OUTPUT);
  pinMode(MS2,OUTPUT);
  pinMode(MS3,OUTPUT);
}

void loop() {
  while (Serial.available()) {
    char incomingByte = Serial.read();
    static String incomingMessage;
    if (incomingByte == '\n') {
      Data = incomingMessage.toInt();
      incomingMessage = "";
    }
    else {
      incomingMessage += incomingByte;
    }
  }

  if (Data > 0){
    xData = Data;
  }
  else if (Data < 0){
    yData = Data;
  }

//  Serial.print("x: ");
//  Serial.println(xData);
//  Serial.print("y: ");
//  Serial.println(yData);

  // Turn motor right at high speed
  if (xData > 750 & yData < -750) {
   // Set speed
    digitalWrite(MS1, LOW);
    digitalWrite(MS2, LOW);
    digitalWrite(MS3, LOW);

    // Set direction
    digitalWrite(dirPin, HIGH);

    // Turn motor
    digitalWrite(stepPin, HIGH);
    delayMicroseconds(2000);
    digitalWrite(stepPin, LOW);
    delayMicroseconds(2000);

    Serial.println("Right High");
  }

  // Turn motor right at medium speed
  else if (xData <= 750 & xData >= 250 & yData < -500) {
    digitalWrite(MS1, HIGH);
    digitalWrite(MS2, LOW);
    digitalWrite(MS3, LOW);
    digitalWrite(dirPin, HIGH);
    digitalWrite(stepPin, HIGH);
    delayMicroseconds(2000);
    digitalWrite(stepPin, LOW);
    delayMicroseconds(2000);
    Serial.println("Right Medium");
  }

  // Turn motor right at low speed
  else if (xData < 250 & yData < -500) {

    digitalWrite(MS1, LOW);
    digitalWrite(MS2, HIGH);
    digitalWrite(MS3, LOW);
    digitalWrite(dirPin, HIGH);
    digitalWrite(stepPin, HIGH);
    delayMicroseconds(2000);
    digitalWrite(stepPin, LOW);
    delayMicroseconds(2000);
    Serial.println("Right Low");
  }

  // Turn motor left at high speed
  else if (xData > 750 & yData > -400) {
    digitalWrite(MS1, LOW);
    digitalWrite(MS2, LOW);
    digitalWrite(MS3, LOW);
    digitalWrite(dirPin, LOW);
    digitalWrite(stepPin, HIGH);
    delayMicroseconds(2000);
    digitalWrite(stepPin, LOW);
    delayMicroseconds(2000);
    Serial.println("Left High");
  }

  // Turn motor left at medium speed
  else if (xData <= 750 & xData >= 250 & yData > -400) {
    digitalWrite(MS1, HIGH);
    digitalWrite(MS2, LOW);
    digitalWrite(MS3, LOW);
    digitalWrite(dirPin, LOW);
    digitalWrite(stepPin, HIGH);
    delayMicroseconds(2000);
    digitalWrite(stepPin, LOW);
    delayMicroseconds(2000);
    Serial.println("Left Medium");
  }

  // Turn motor left at low speed
  else if (xData < 400 & yData > -400) {
    digitalWrite(MS1, LOW);
    digitalWrite(MS2, HIGH);
    digitalWrite(MS3, LOW);
    digitalWrite(dirPin, LOW);
    digitalWrite(stepPin, HIGH);
    delayMicroseconds(2000);
    digitalWrite(stepPin, LOW);
    delayMicroseconds(2000);
    Serial.println("Left Low");
  }
}
