CE433 Embedded Devices Spring 2022
Lab 5 - A 3-bit Adder/Subtractor for 2's Complement Signed Binary Numbers
Name: Ryan Jeanes

Email: rejeanes@fortlewis.edu

Lab 5 - A 3-bit Adder/Subtractor for 2's Complement Signed Binary Numbers
Introduction

This lab was to build a 3-bit adder/subtractor module that uses 2's complement signed binary numbers.

Results

The LED displays are working as intended, however the 7-Segment display is not working as intended. The number is being displayed in both segments, however the negative sign can be seen in the correct segment as it's brighter than the number. I tried to have the segments refreshing at a rate of 1kHz, but either my math was incorrect, there's a logic error, or possibly the BJTs are switching faster than the display can update at this refresh rate. Ran out of time to fix it, however.
Task 1 and 2

The video demo is here.

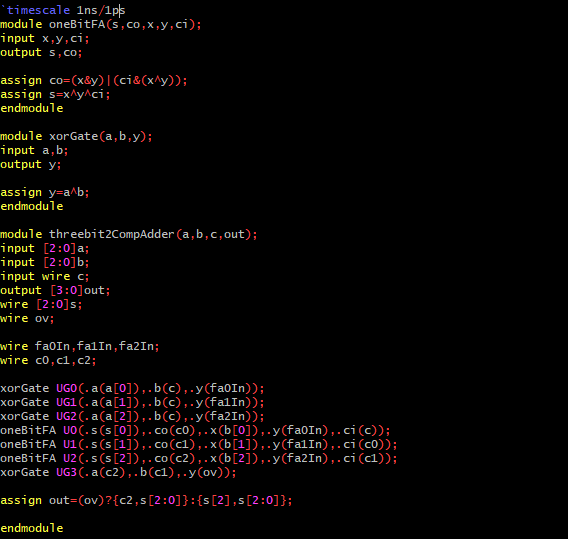

Figure 1 - 3-bit adder/subtractor using 2's complement.

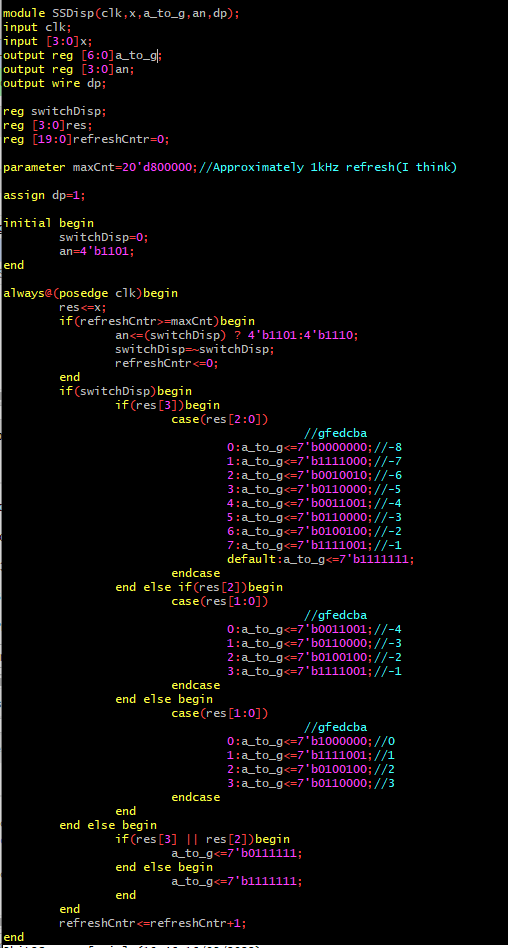

Figure 2 - Module for 7-segment display.

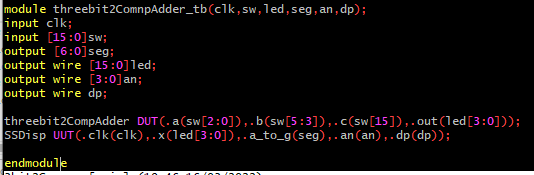

Figure 3 - Top module for controlling the LEDs and 7-Segment display.
