1. Basy 3 FPGA to implement a VGA Driver
2. The purpose of this lab is to use the VGA port and driver
and connect to a monitor to create display parameters and create
movement of certain parameters using a clock.
3. Materials and Methods
Vim computer
Application
Monitor and VGA
Cable
Vivado Application
4. Results

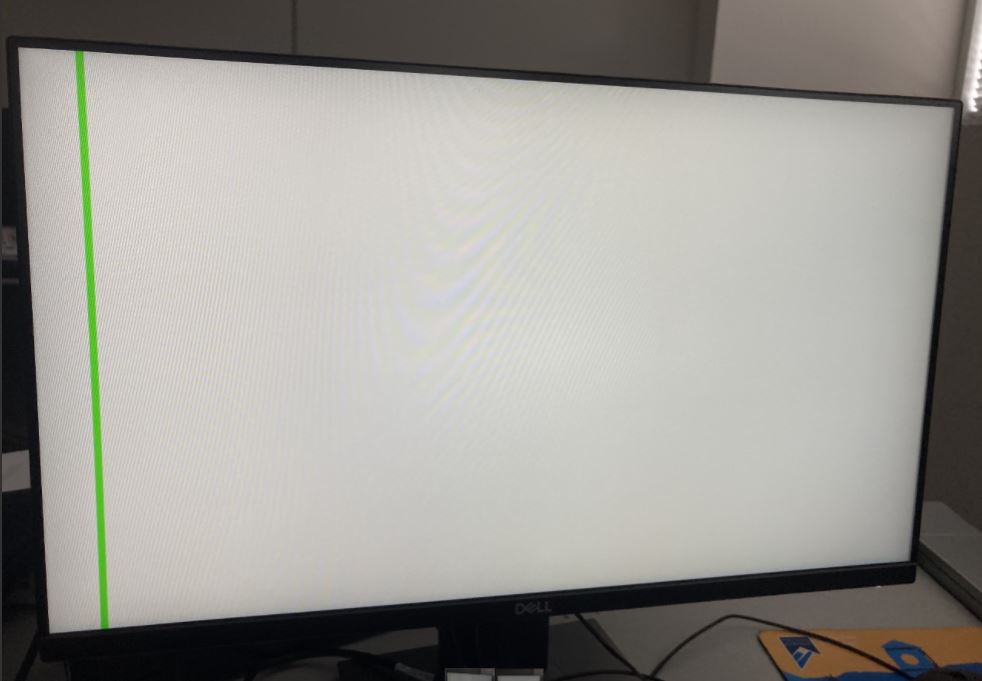

Figure 1. VGA display allows green line to be displayed with parameters
of 32 to 35.
Figure

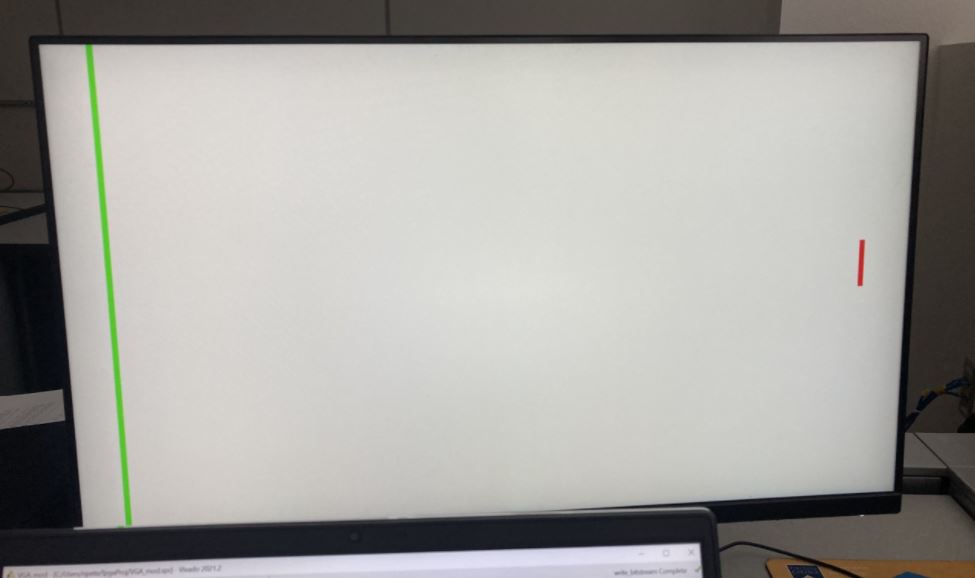

2. VGA display allows for the prexisting green line and red line will
trimmed vertical and horizontal parameters.
Figure 3. Moves read bar to the right by 1 pixel for every half
second with code and bouncing bar demonstration for a speed of 0.01
pixels per second.

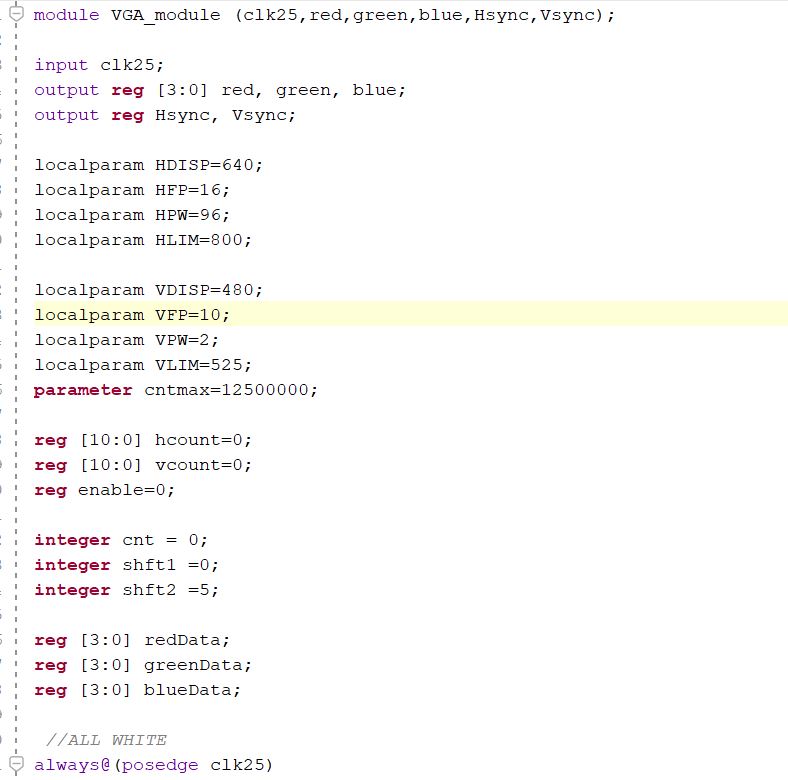

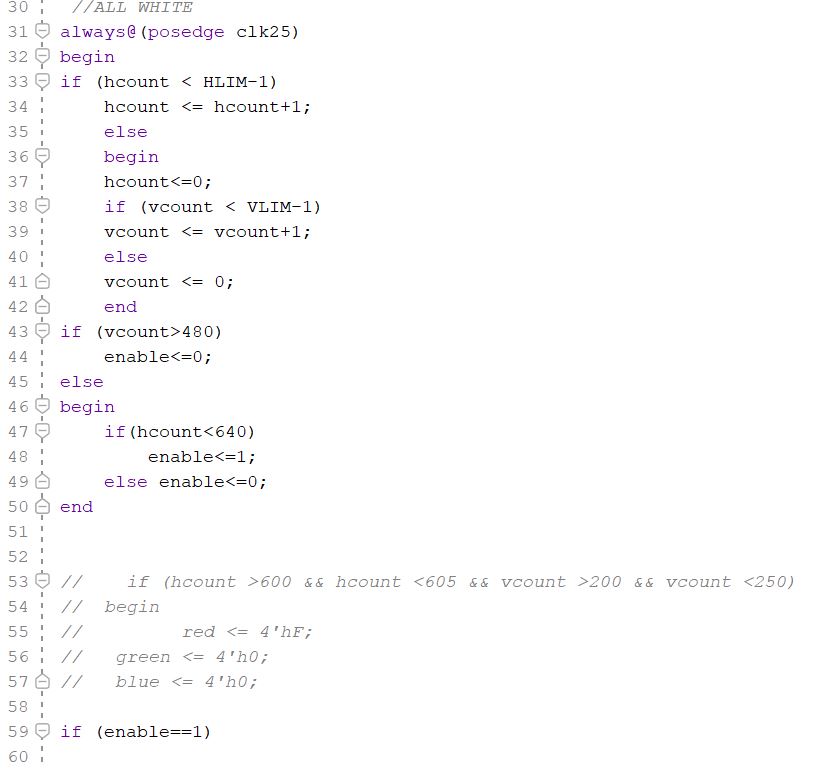

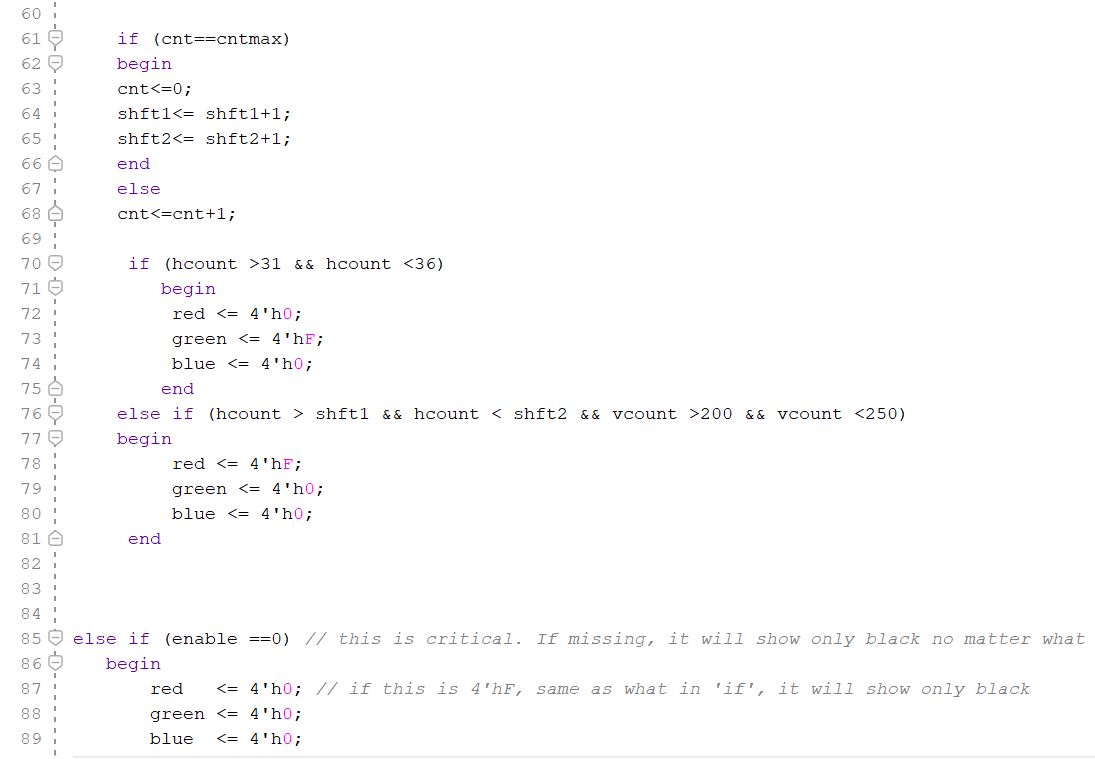

Figure 4. Code for 1 pixel every half second task.

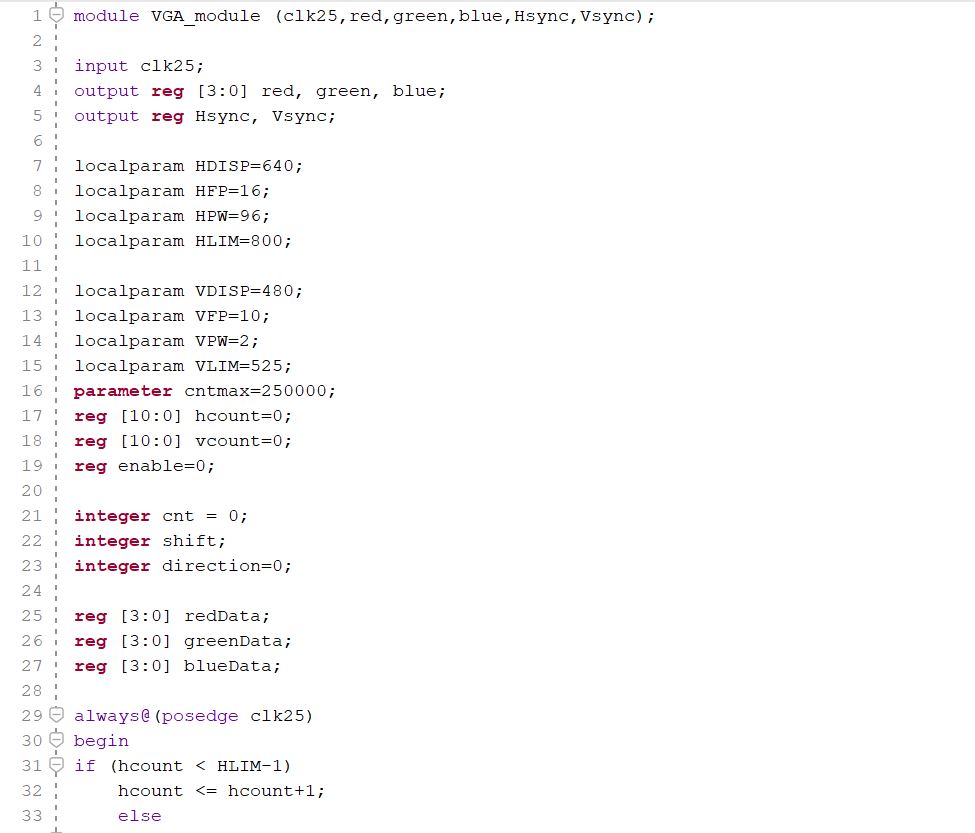

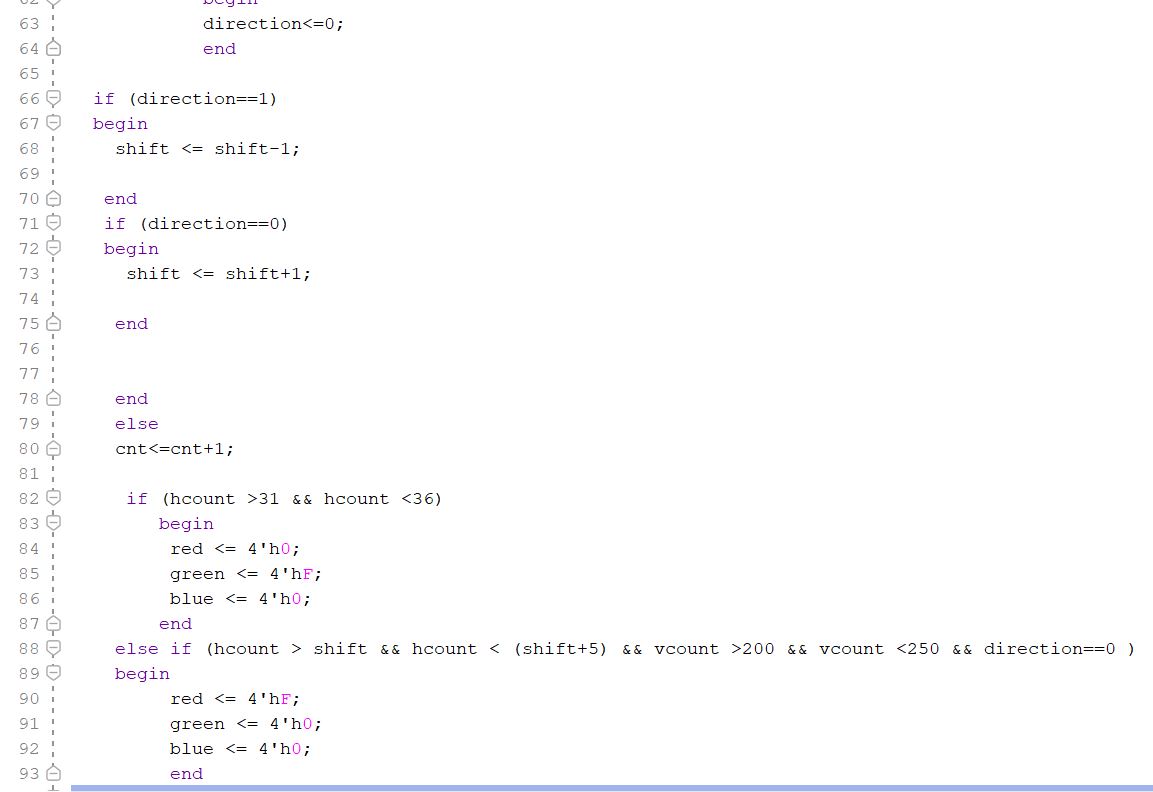

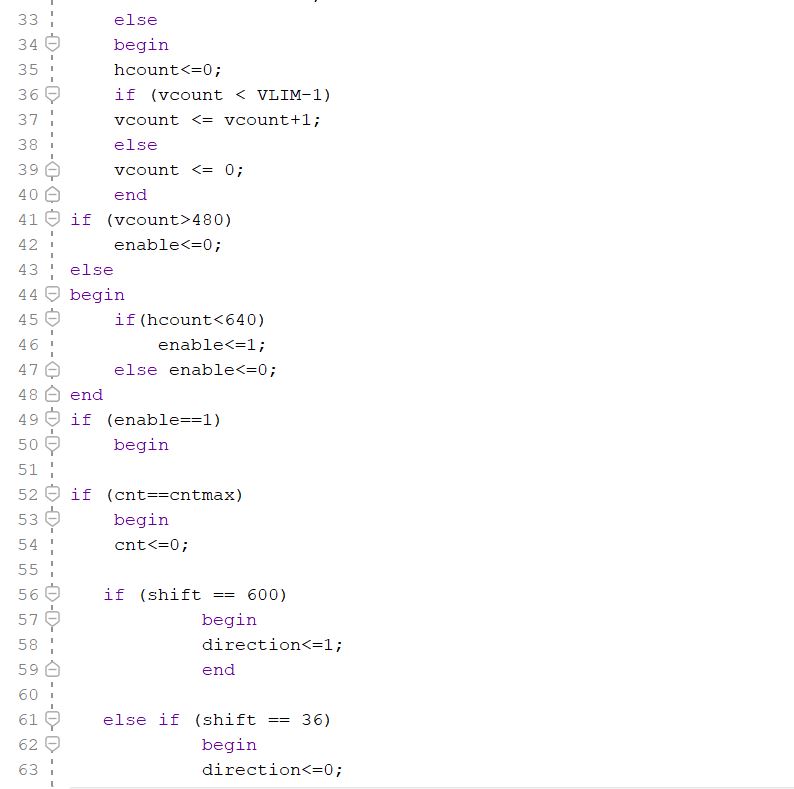

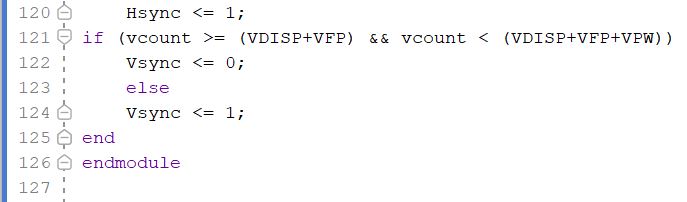

Figure 5. Code for bouncing code, 0.01s/ pixel task.
5.
Discussion The
lab took much time but overall was a great feat. The code for the
bouncing bar was the most challenging but once it was figured that
certain parts of the code were not being allowed to fire because of the
conditional statements, it became a much simpler task. Overall the
tasks allow me to learn a significant amount about the overall code and
about certain segments of the code that allow conditions to be achieved
so the code can be implented properly.
