CE 432 Lab 2021 Fall
Lab 4
Name: Nicolas Llarena
Email: Njllarenaarias@fortlewis.edu

1. Tutorial 4 - 3D Printing an object

2. Introduction
The purpose of this lab is to 3D print a small object to practice and learn how to do it effectively. A plastic clip will be printed that wil be used for a future laboratory in this course.

3. Materials
Materials Quantity
3D Printer
 1
Solidworks
 1

4. Results

 Task 1

Figure 1.  Design made in AutoCAD for the part to be printed

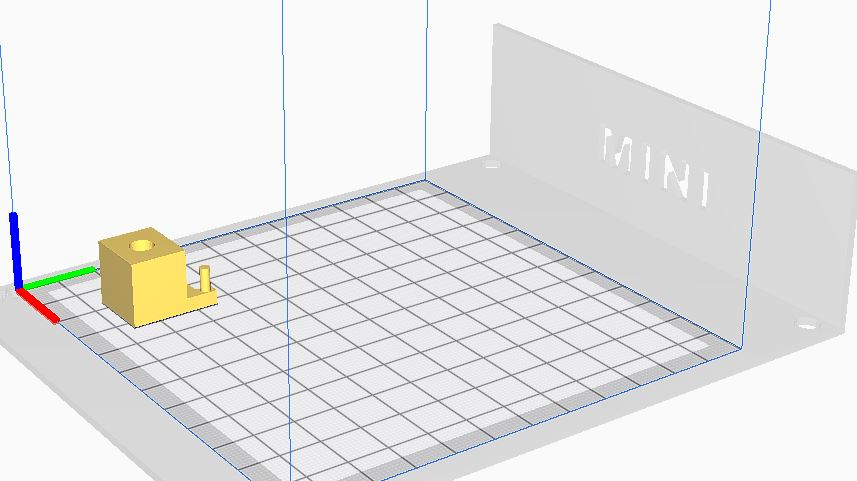

Figure 2.  Design imported and sliced in Ultimaker Cura.

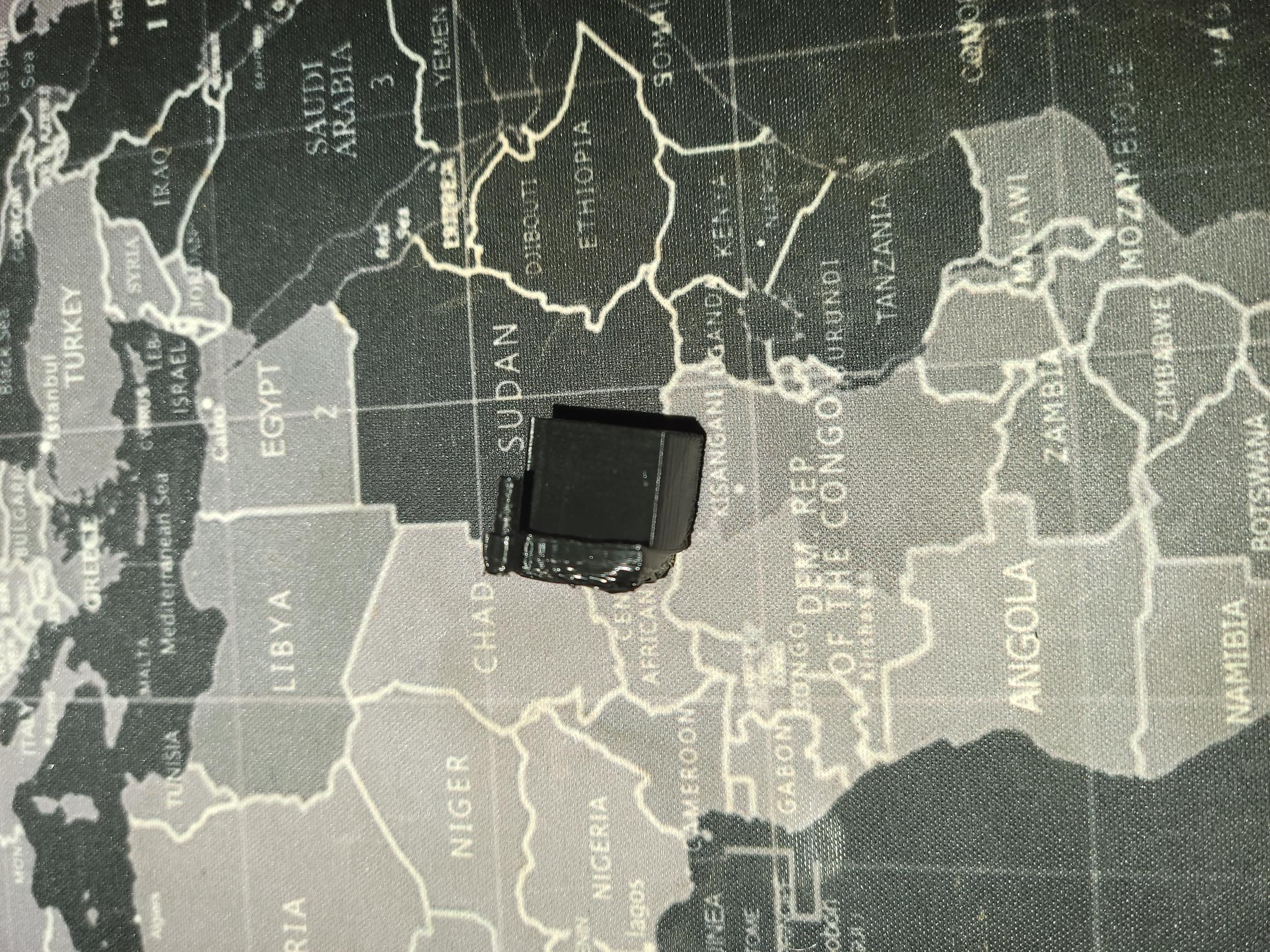

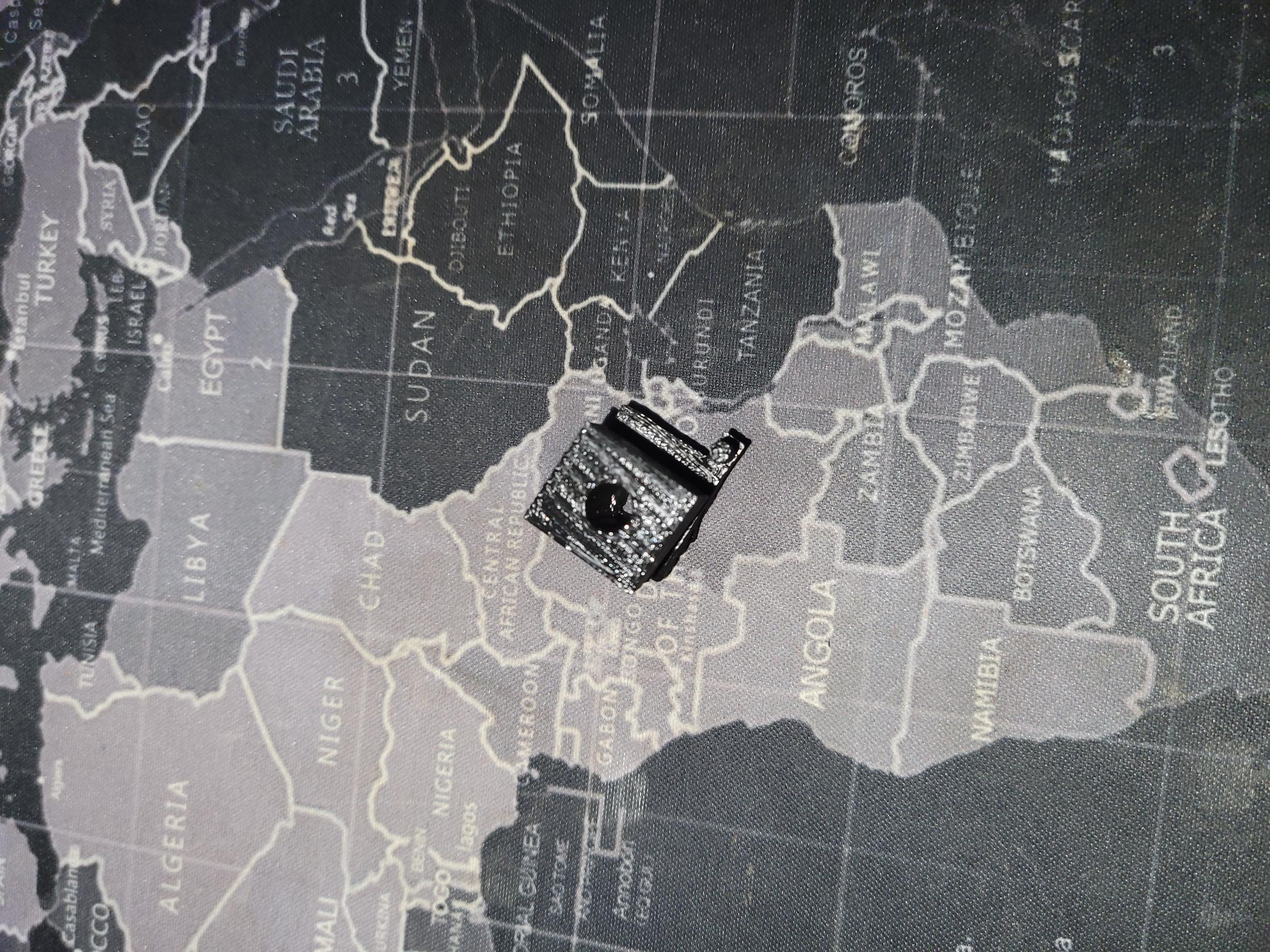

Figure 3.  Images of the final object succefully 3D printed.





Discussion

This Tutorial was fun and I learned a few things when doing it. I enjoyed creating and printing the object with a 3D printer. Unfortunately, the bottom plane on the part did not come out perfect. It seems as if the piece got shifted while printing for some reason. Will have to re print or try a different printer at another time. Looking forward to using more 3D printers in the future.
