CE432 Fall 2022
Homework 7
Name: David Lee
Email: djlee1@fortlewis.edu

PCB Soldering and Mounting

Introduction:
We recveived the PCB that was created in homework 4. I then soldered the componets on it to have it control the Car.

Materials and Methods:
PCB, Car and misc components to mount


Results:

Task 1: Solder the components needed on the PCB

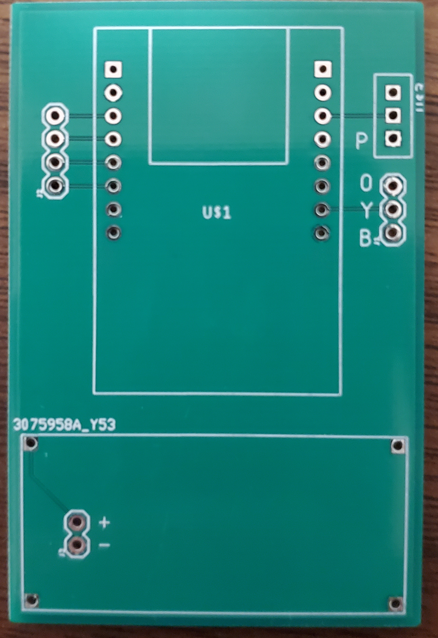

Figure 1: Shows PCB designed from homework 4

This is the PCB Designed from homework 4. I included labels on it so that it will be easier to program. Where the switch is mounted you need to switch to the "P" inorder to reprogram the ESP32.
The "O","Y","B" correspond to the colors of the programming cord. For easy connection.

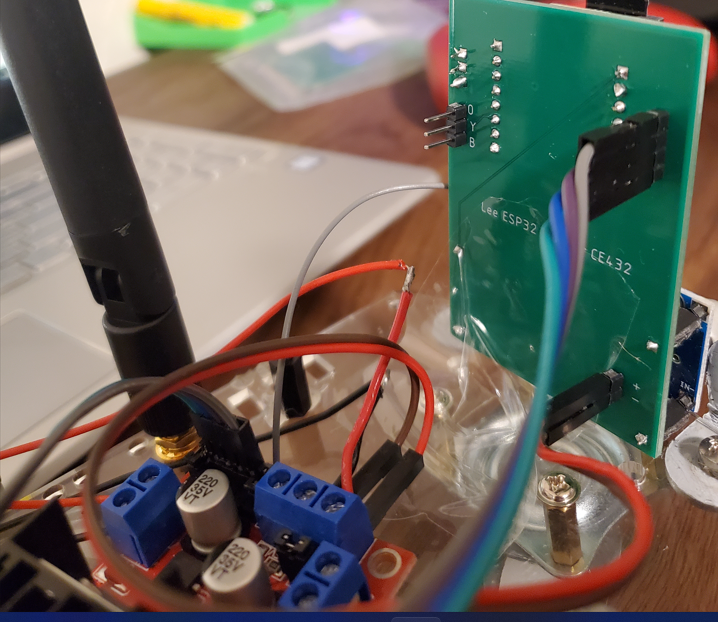

Figure 2: Back of the PCB mounted

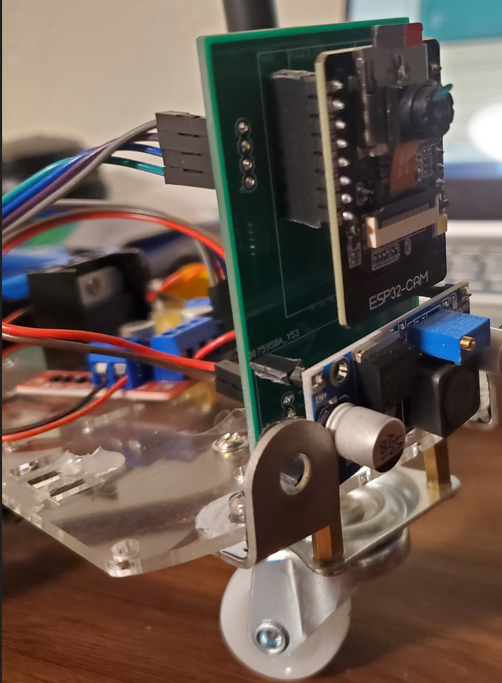

Figure 3: Front of the PCB mounted

Task 2: Video of the car working with the desgined PCB


Figure 4: Shows a video demonstration of the car functioning



Discussion:
This project was good to complete and make sure the PCB that I was designed in homework 4 worked. I completed the in person demo on Tuesday 10/18.
