CE338 Digital VLSI Design Lab
Lab 8 - 8-bit MUX and 8-bit High Speed FA
Connor O'Keefe Email: cwokeefe@fortlewis.edu
Introduction: This
lab is to desing the schematic and layout of a 8-bit MUX and a 8-bit
high speed FA. The high speed FA is faster than the original FA we have
built. Not only is it faster, but the layout is significantly smaller. Materials and Methods
Electric VLSI
LTSpice
Procedure
The schematic of the MUX. Starting with the 1-bit, then creating the 8-bit.

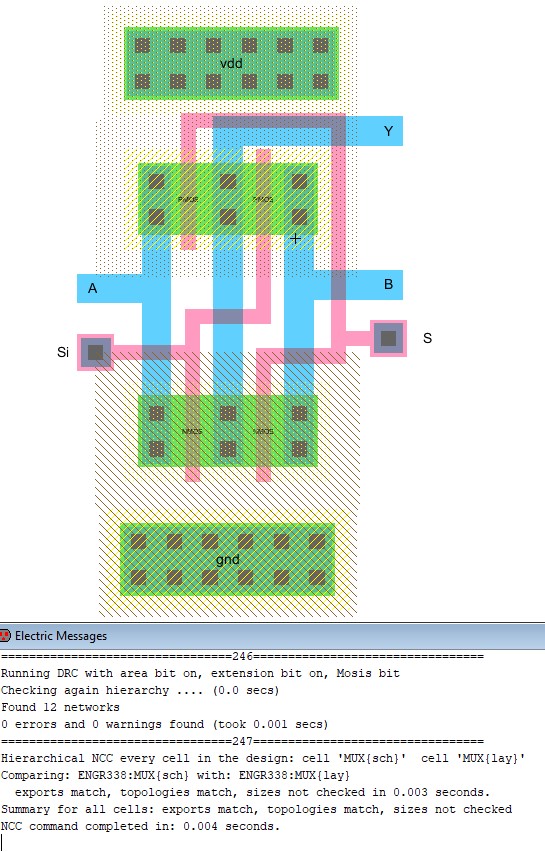

The layout of the 1-bit MUX and the 8-bit MUX.

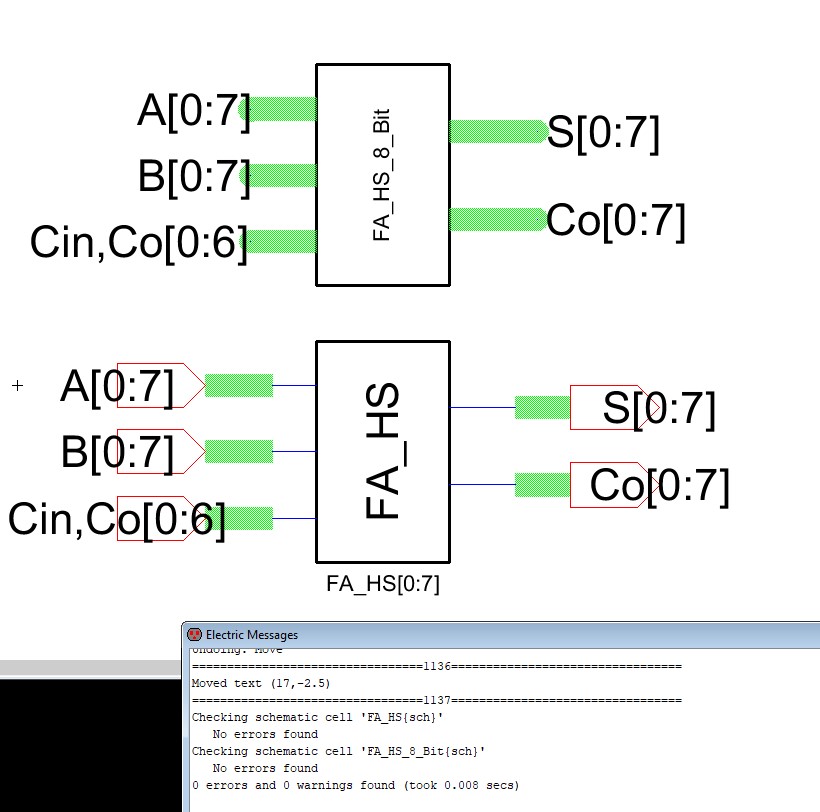

The schematic of the 1-bit and 8-bit high speed FA.

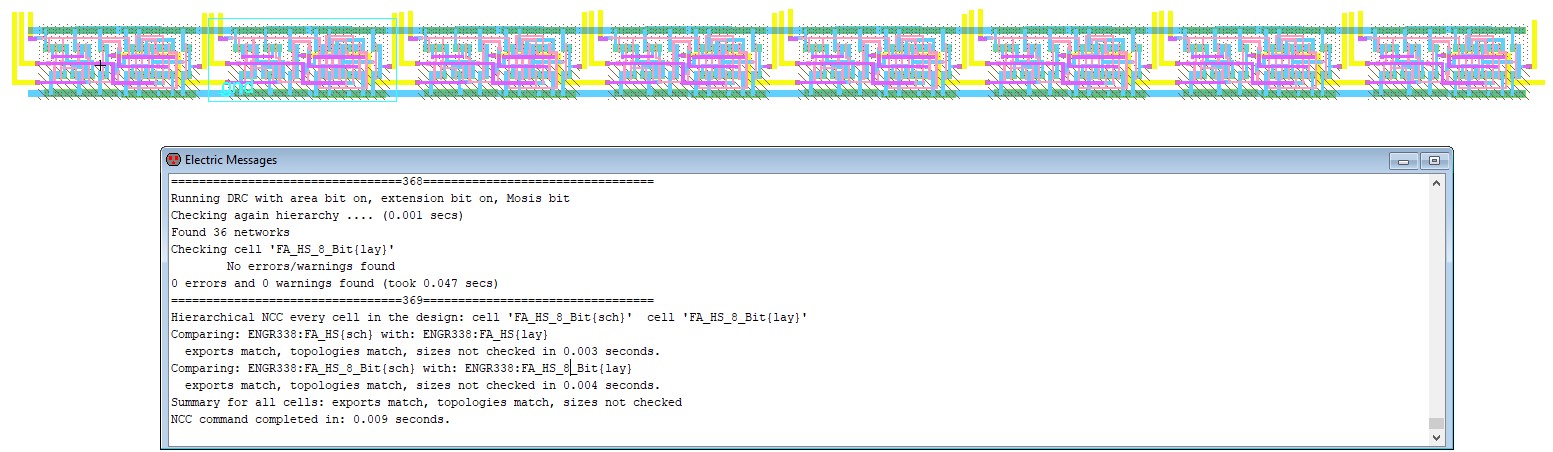

The layout of the 1-bit and 8-bit high speed FA.
Results Simulation of the 1-bit MUX.
Simulation of the 8-bit MUX.

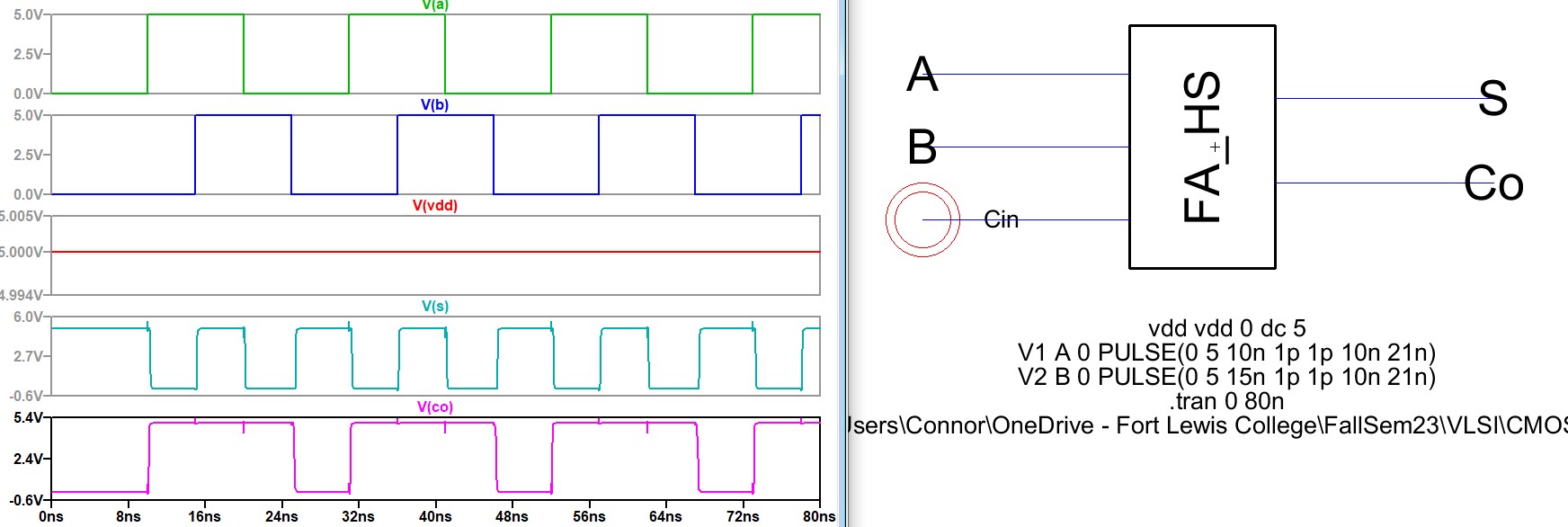

Simulation the of 1-bit high speed FA.

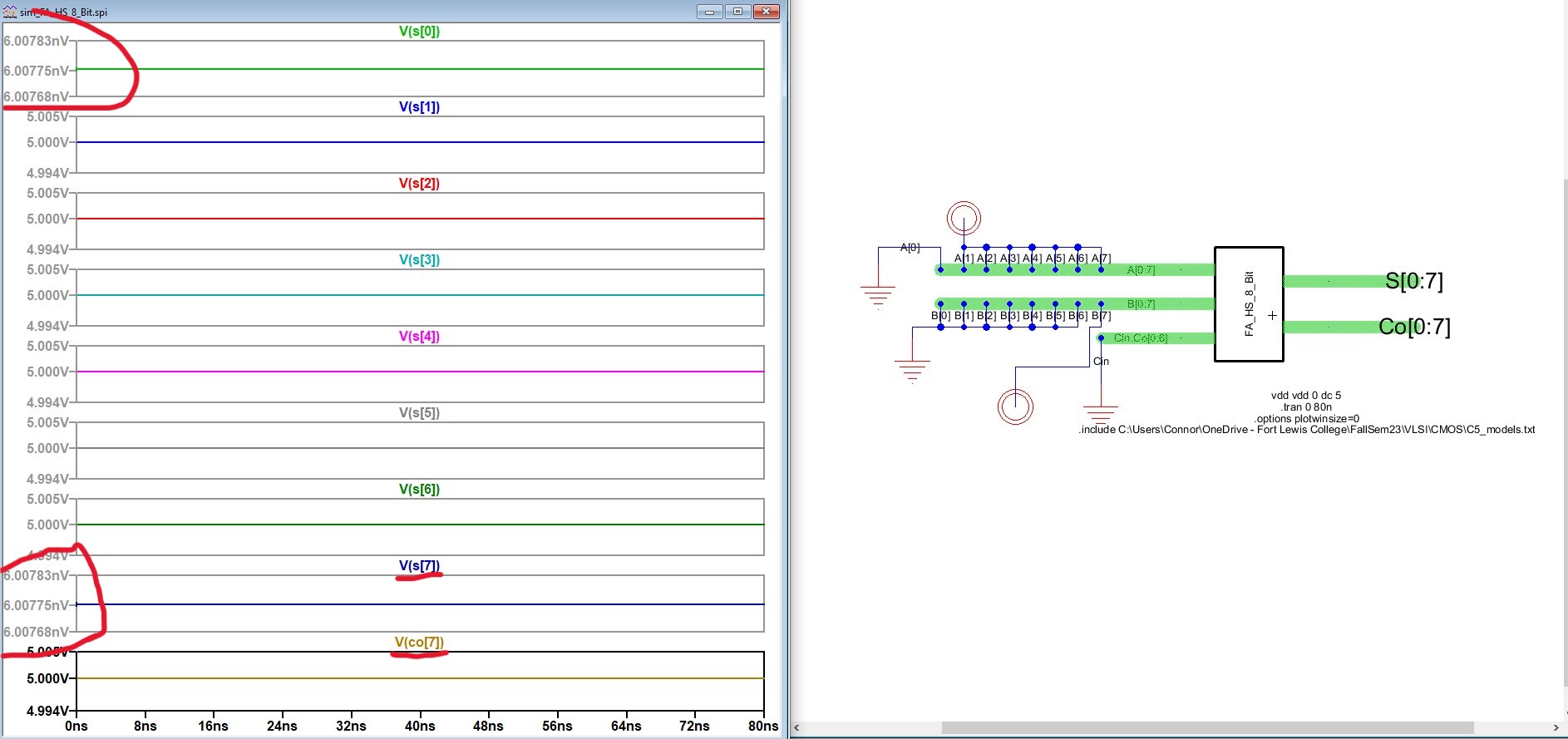

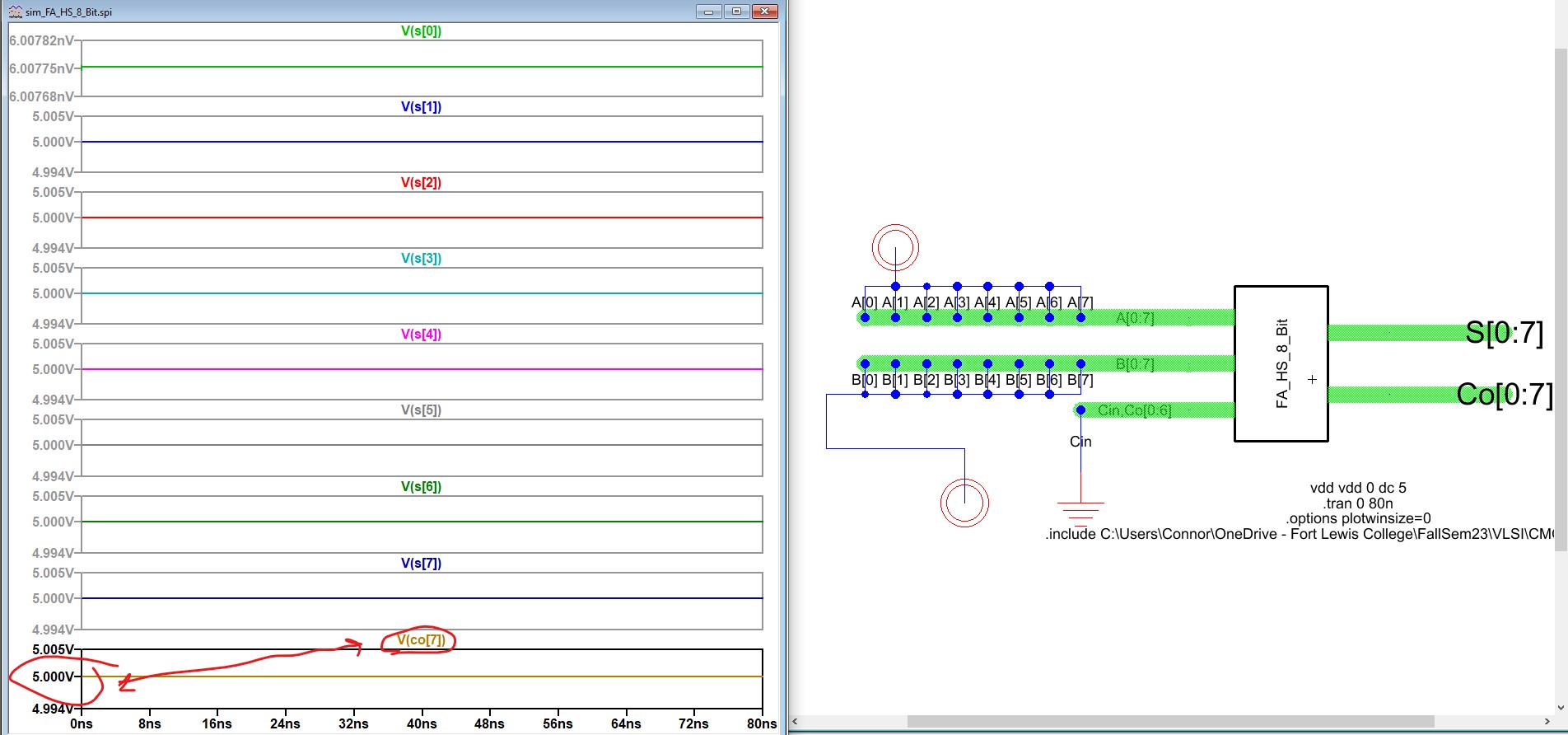

Simulations of the 8-bit high speed FA.
A=11111110, B=10000000
A=01111110, B=10000000
A=11111111, B=11111111
Discussion
All of the simulations produced the expected results.
