CE338 - Digital VLSI Design
Lab 1
- Review of superposition, Thevenin's Equivalence, and LTSpice
Connor O'Keefe
Email: cwokeefe@fortlewis.edu
Introduction
This lab is to review basic circuit theories and verify using LTSpice
Materials and Methods
The work was completed by hand and verified using LTSpice
Procedure
Problems were given by Dr. Li and completed during lab.

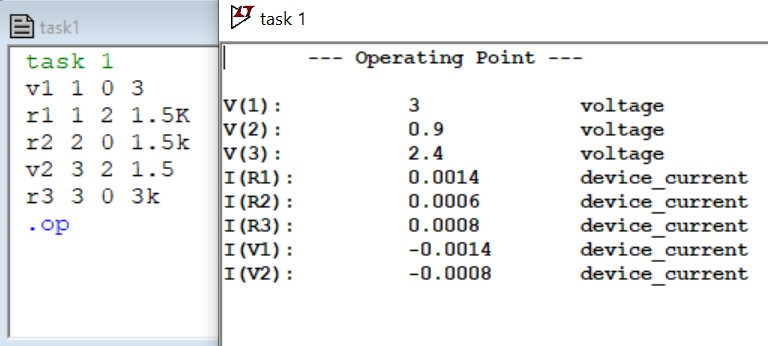

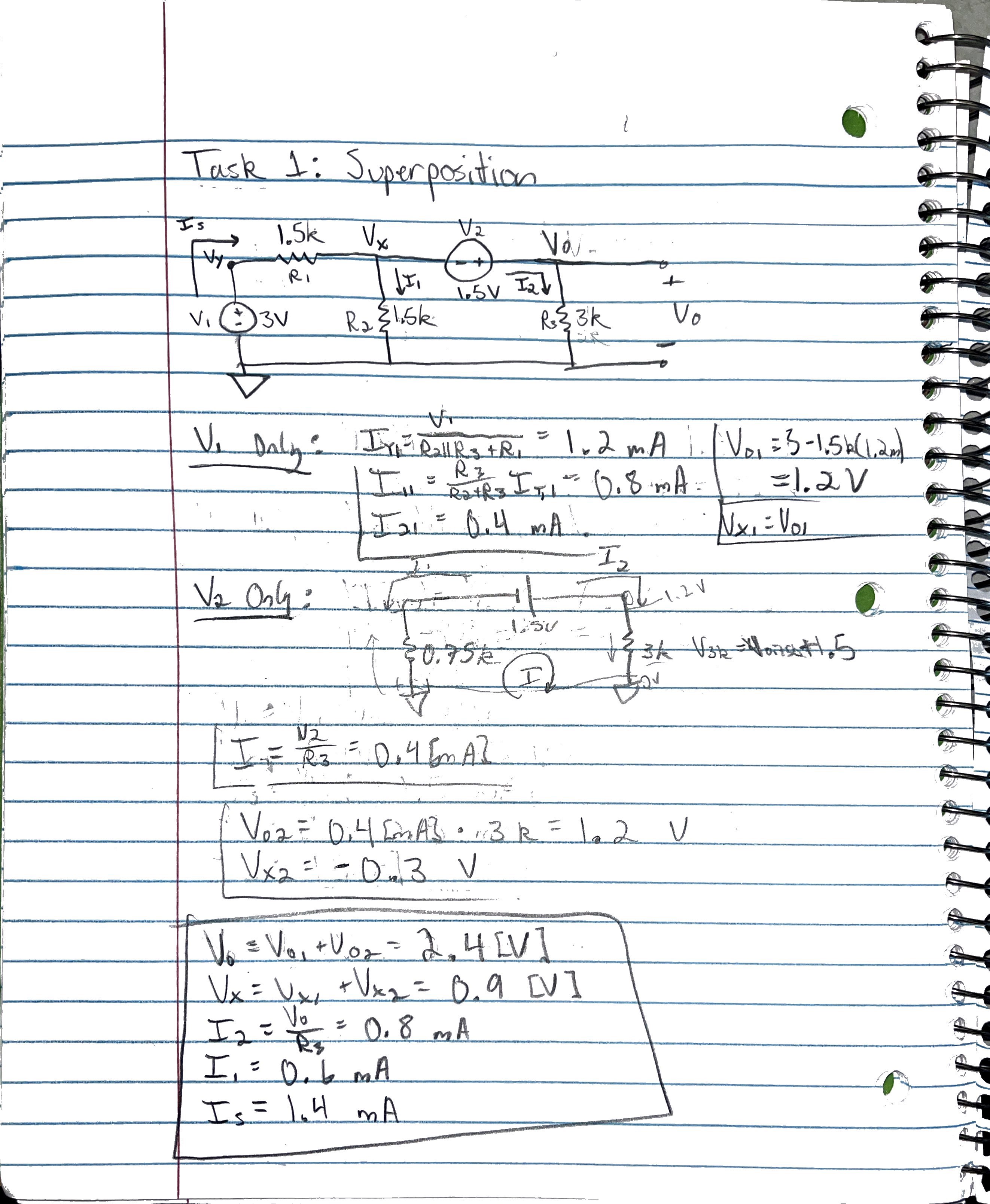

Task 1: Superposition

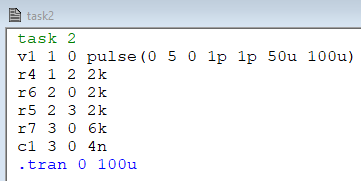

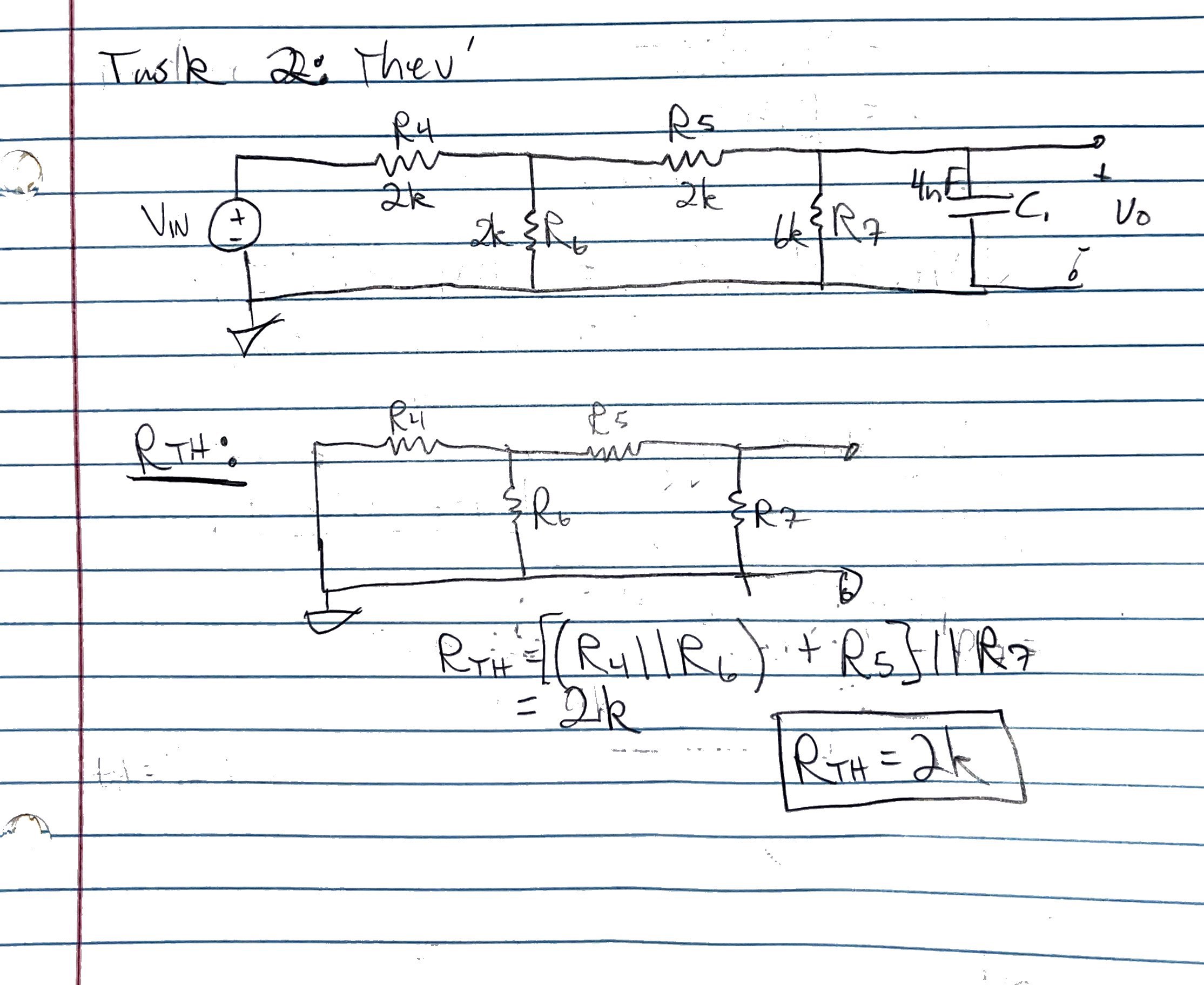

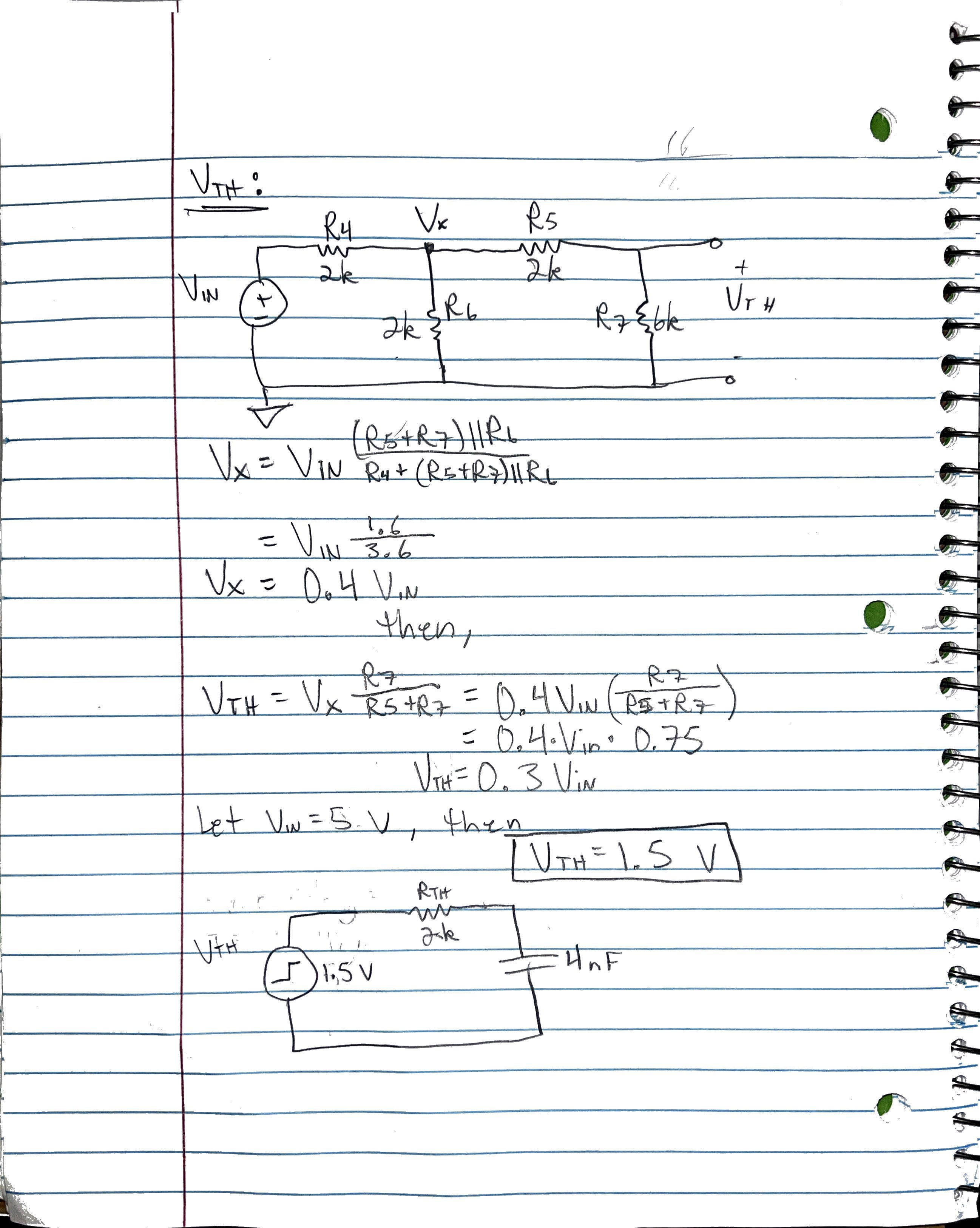

Task 2: Thevenin's Equivalent Circuit
Results
The results in LTSpice confirmed the hand calcualtion for both circuits.
Discussion
This was a helpful review.
