ENGR338 SPRING 2021
Lab 1: Review Superposition, Thevenin's Equivalent Circuit, and LTSpice
Name: Caroline Kleven
Email: cekleven@fortlewis.edu

Lab 1: Review Superposition, Thevenin's Equivalent Circuit, and LTSpice

Introduction
    Lab 1 is a review of common methods used to solve circuits and various elements of circuits.

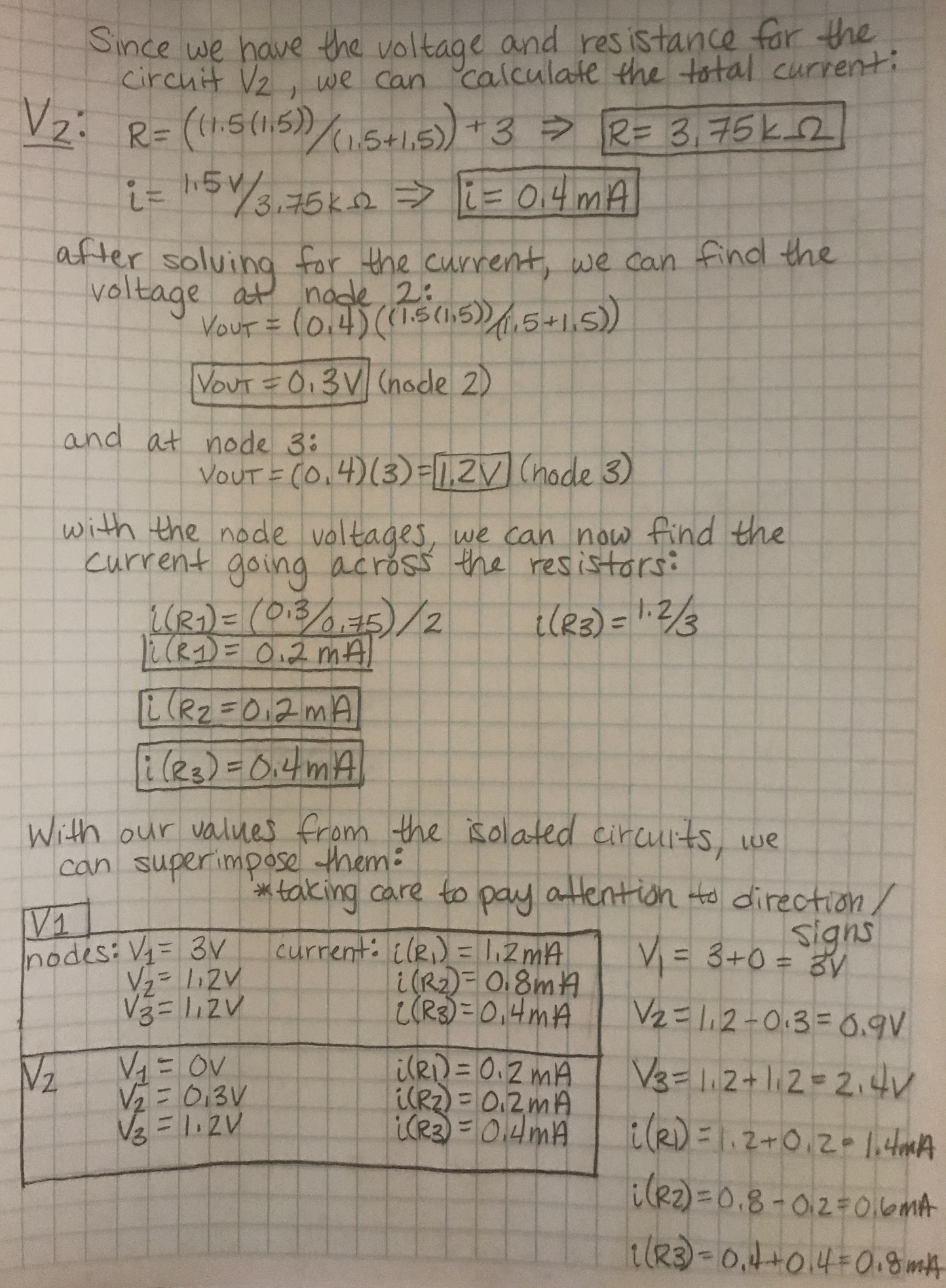

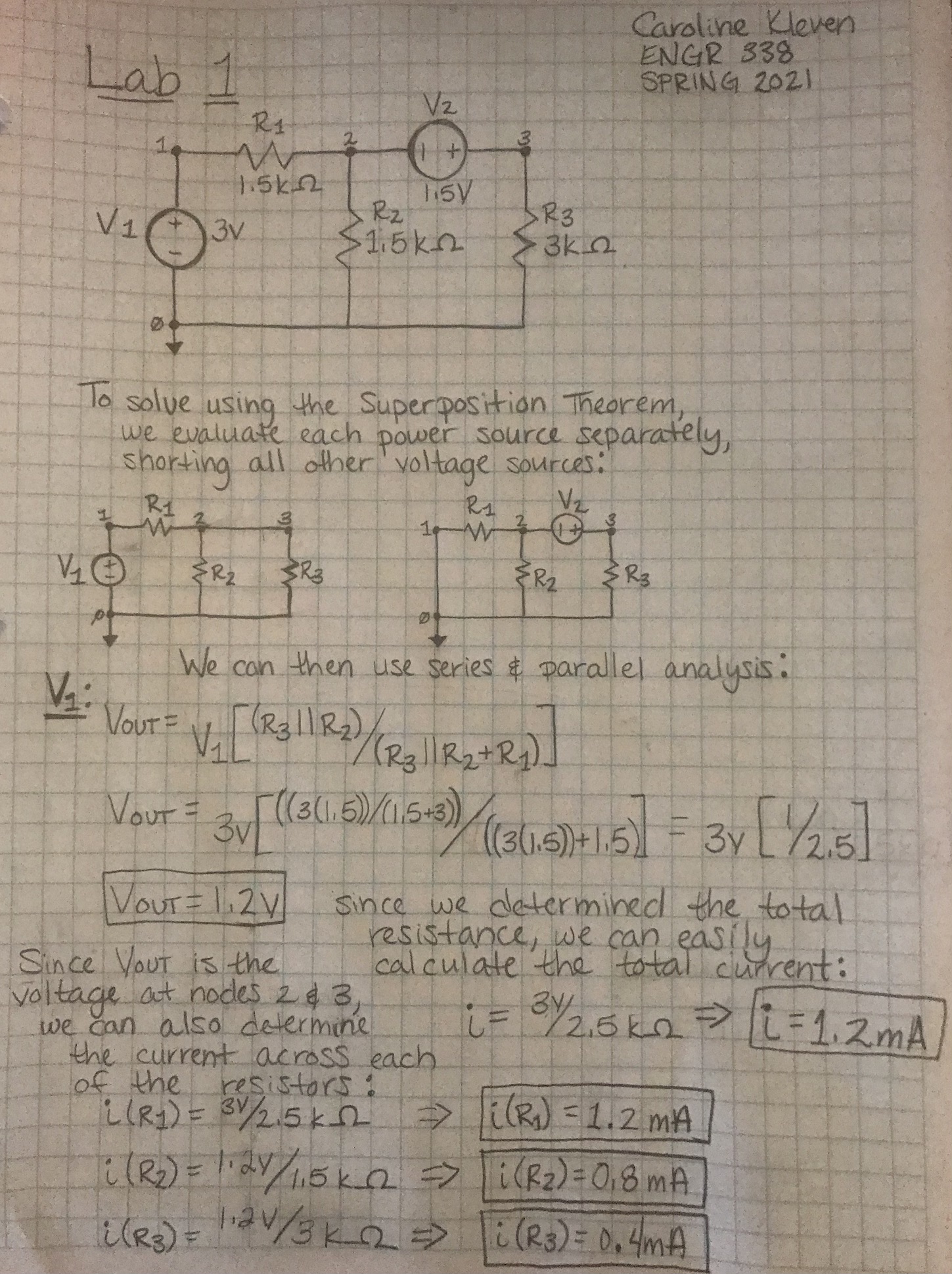

    In Part 1, we used the superposition theory to calculate all the voltages and currents in a circuit, verifying the results with LTspice.

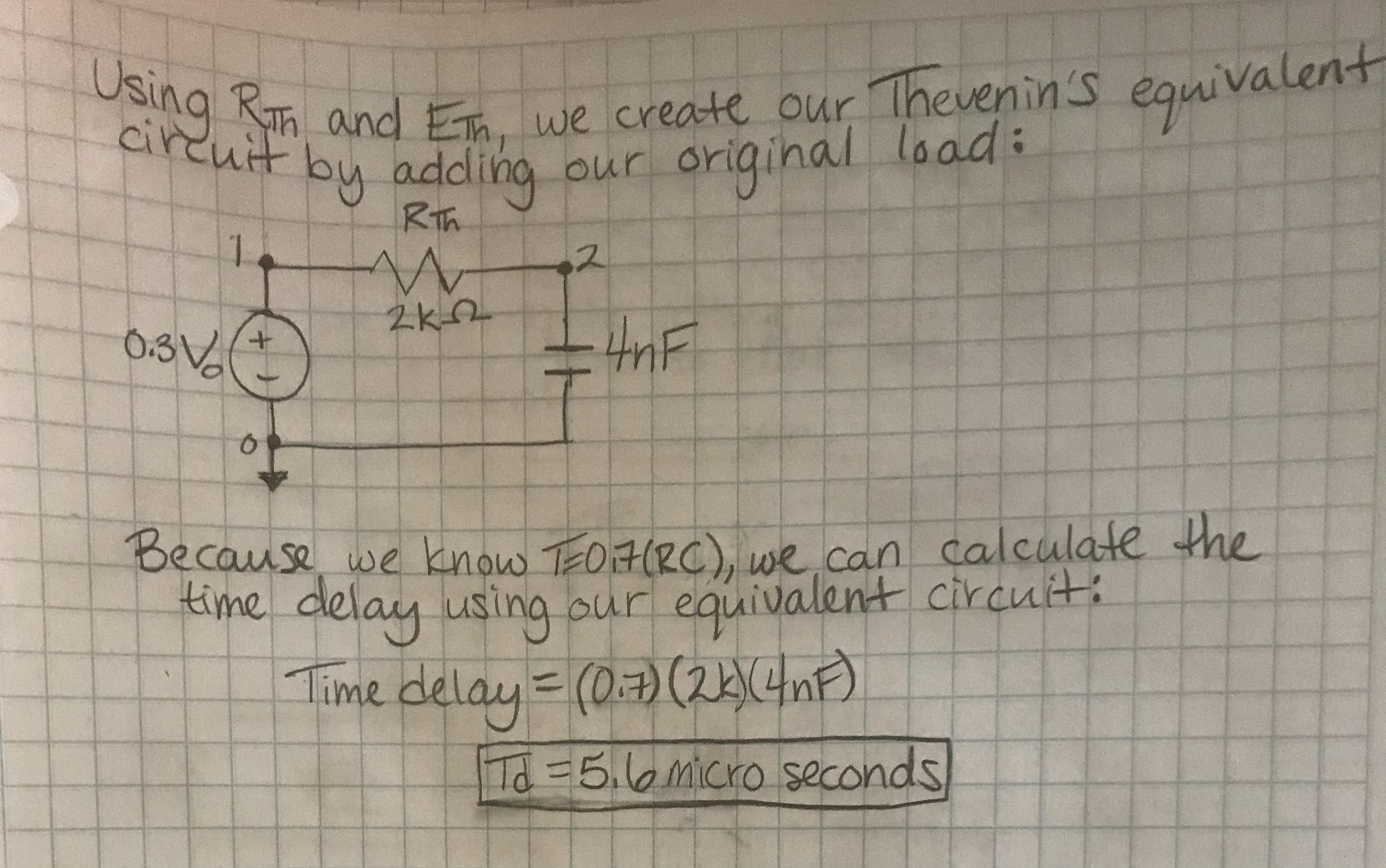

    In Part 2, we converted the circuit from Part 1 into its Thevenin's equivalent, treating the 4nF CL as a load. We again verified our results using LTspice.

Materials and Methods
    For Lab 1, circuits, voltages, currents and resistance were calculated by hand. LT Spice was used to verify answers.

    The Superposition theorem and Thevenin's theorem were emphasized.

Results

Part 1:

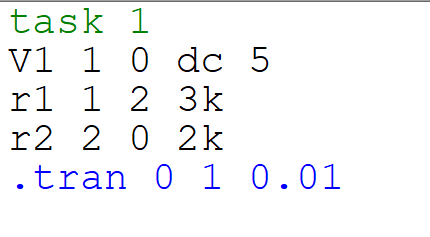

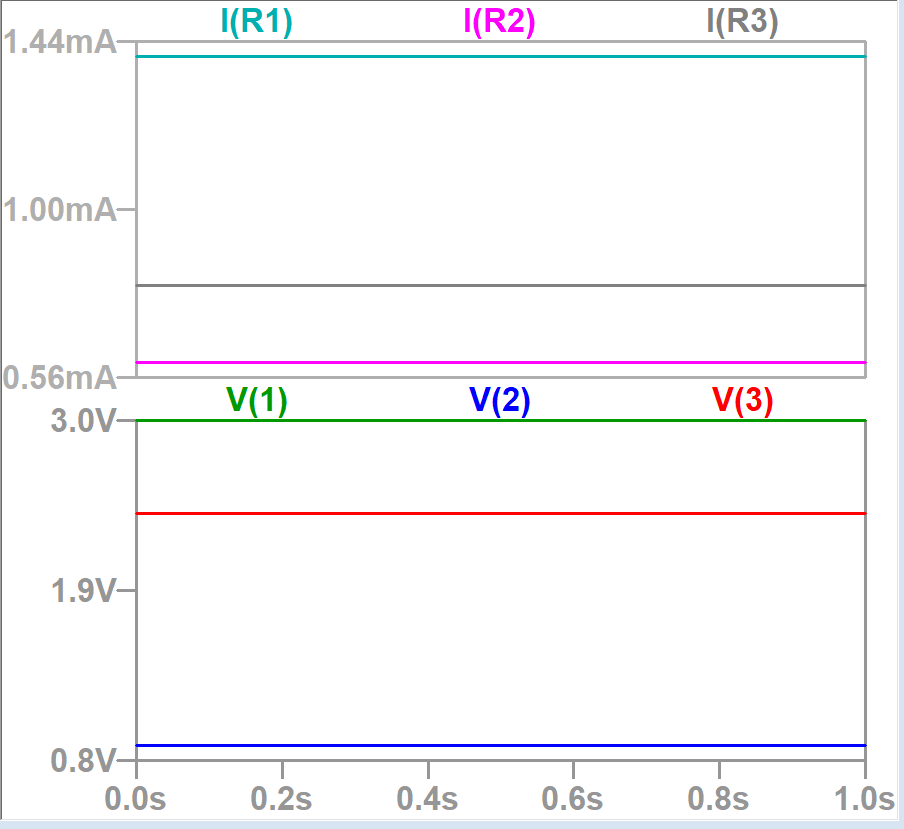

Results were verified using LT Spice:




Part 2:

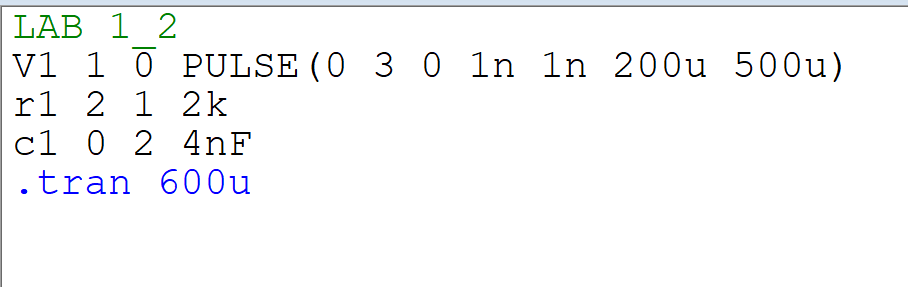

LT Spice was then used to run the following code:

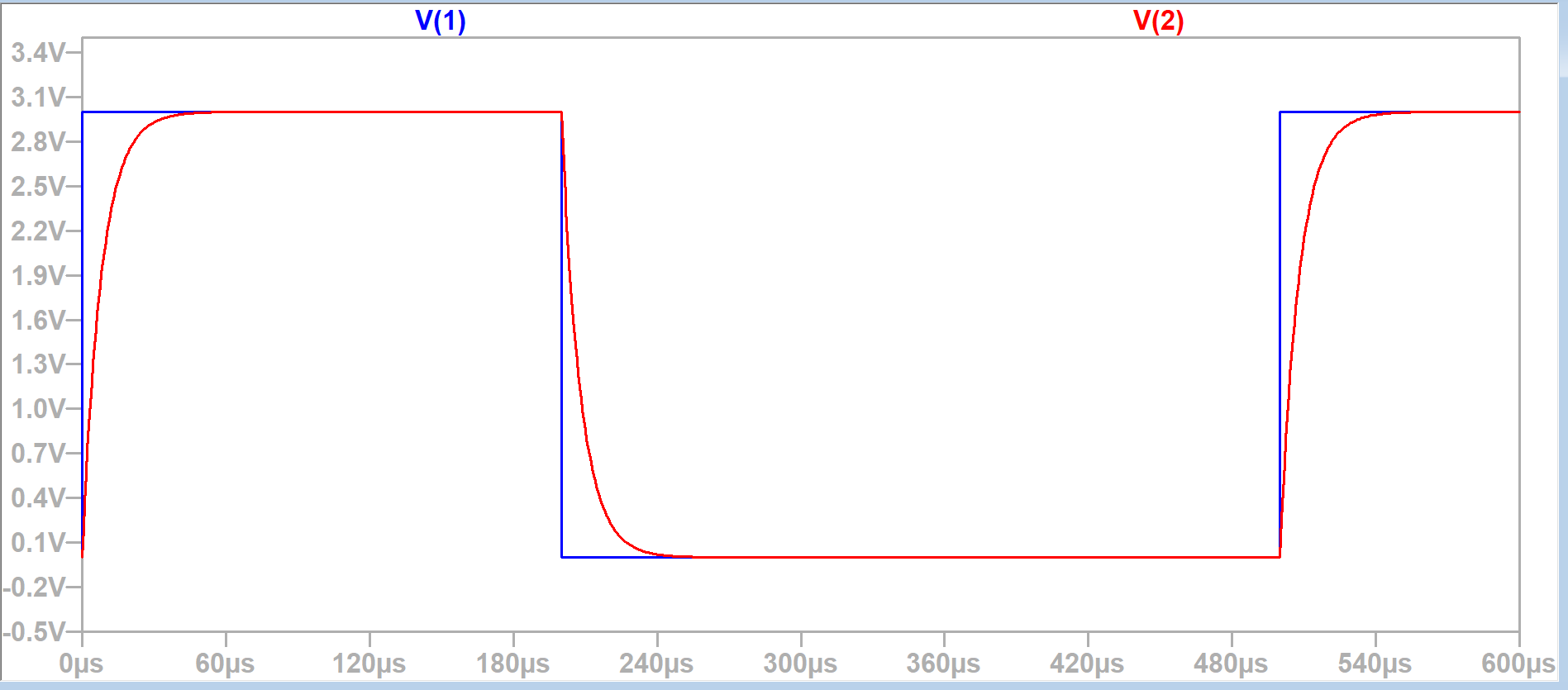

We are able to add traces to visually show the time delay:


Discussion
Reviewing circuit theories and LTspice helped me feel more confident with the problems covered in class.
